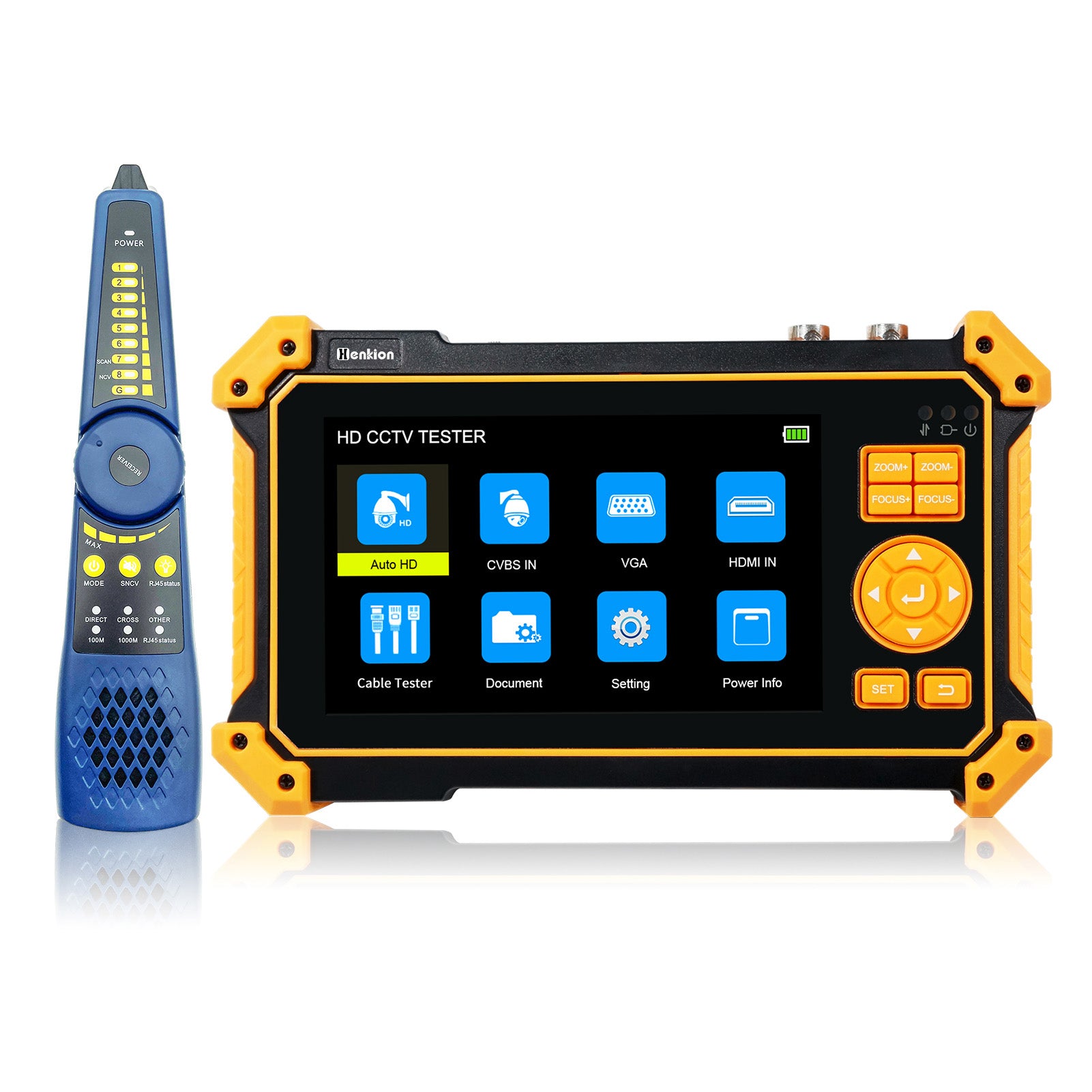

This is the HD-3200C HD camera tester in the Henkion HD-3000 series. It is an essential tool for field technicians in the field of security cameras. Used for the installation and maintenance of HD coaxial cameras.
HD-3200C uses a 5inch TFT-LCD screen(Non-touch screen), and can support the testing of up to 4K 8MP HD CVI TVI AHD SDI camera and CVBS cameras, but it does not support IP camera testing. Built-in professional test software, UTP cable test, PTZ controller, power output, HDMI&VGA input, audio input, and RS485 are all available. Using a self-developed operating system (based on Linux), work is stable and reliable. You can continue to view the details to learn more.
SUPPORT CAMERA TYPE
IP camera test: Don't support
Coaxial HD camera test:
Max 8MP TVI/AHD/CVI/SDI camera test, 3840 x 2160P, support UTC control and call OSD menu.
CVBS camera test:
1* BNC input, NTSC/PAL (Auto adapt). PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols. such as PELCO-D/P etc.
Parameters
|
Brand |
Henkion |
|
Model |
HD-3200C |
|
Display |
5 inch TFT-LCD screen(Non-touch screen), 800x480 resolution |
|
12MP 4K IP camera test |
Doesn't support IP network camera test. |
|
HD Coaxial test |
8MP TVI camera test: 3840 x 2160P 12.5/15 FPS, UTC control/ call OSD menu |
|
8MP CVI camera test: 3840 x 2160P 12.5/15 FPS, UTC control / call OSD menu |
|
|
8MP AHD camera test: 3840 x 2160P 15FPS, UTC control / call OSD menu |
|
|
8MP EX-SDI, HD-SDI, 3G-SDI camera test: UTC control / call OSD menu |
|
|

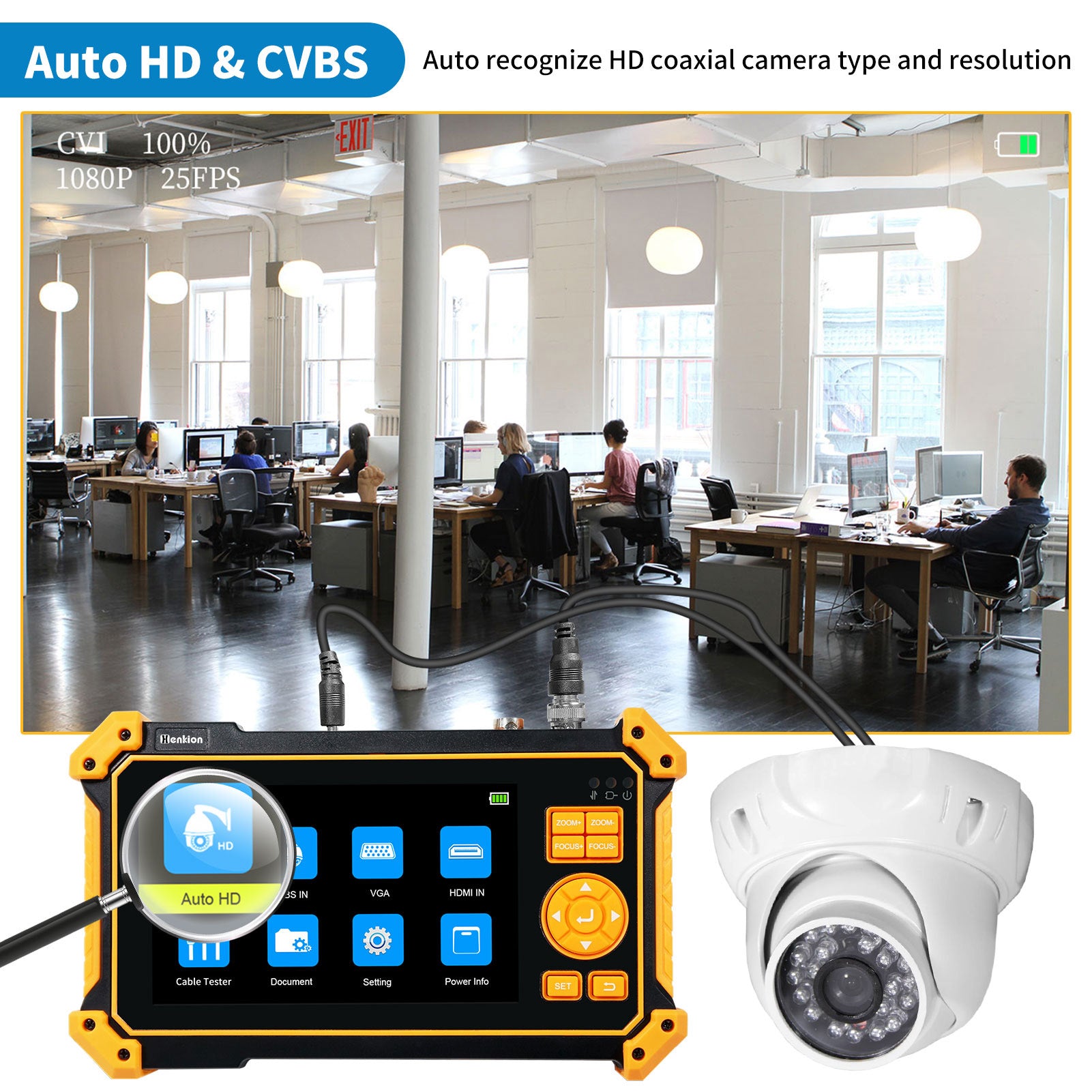

Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu |
|
|
CVBS camera test |
1 channel BNC input, NTSC/PAL (Auto adapt) |
|
PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc |
|
|

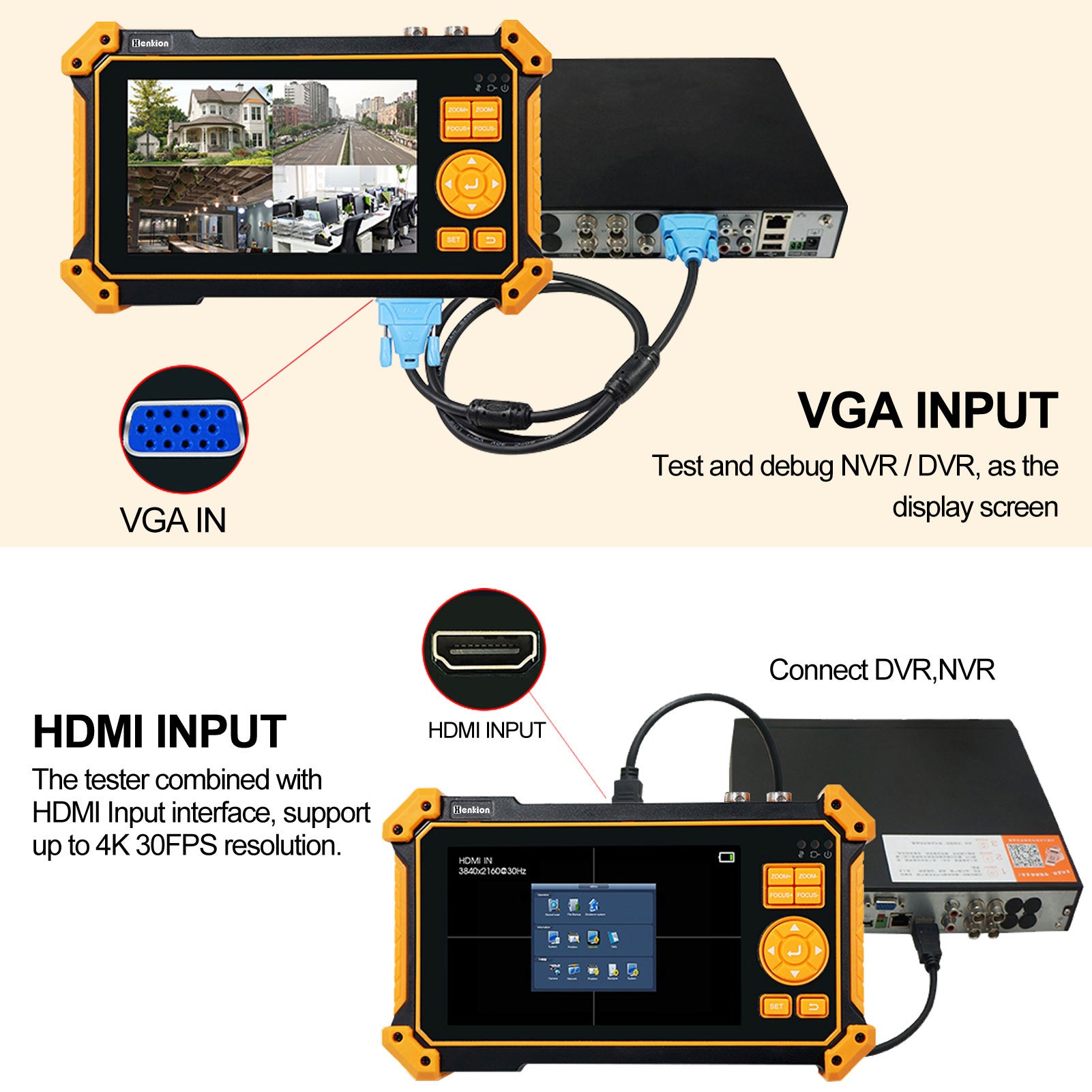

HDMI |
HDMI input: 1 ch HDMI input, support max 4K 30FPS. The resolution asfollow: 4K_3840x2160/2K_2560x1440P/1920×1080P/1920×1080i /720×480P/720×576P/1280×720P/1024×768P/1280×1024P /1280×900P /1440×900P, etc |
|
HDMI output: N/A |
|
|
VGA |
1 ch VGA input, support max 1920 x 1200P 60FPS. The resolution as follow: 1920 x 1200P 60FPS/ 1920×1080P 60FPS / 1792×1344P 60FPS / 1680x 1050P 60FPS / (1600x1200P/900P 60FPS) / 1440x900P 60FPS / 1360x768P 60FPS / (1280x1024/960/800/768/720P 60FPS) / 1152x870P 60FPS / 1024x768P 60FPS / 800x600P 60FPS / 600x480P 60FPS. |
|
Cable test |

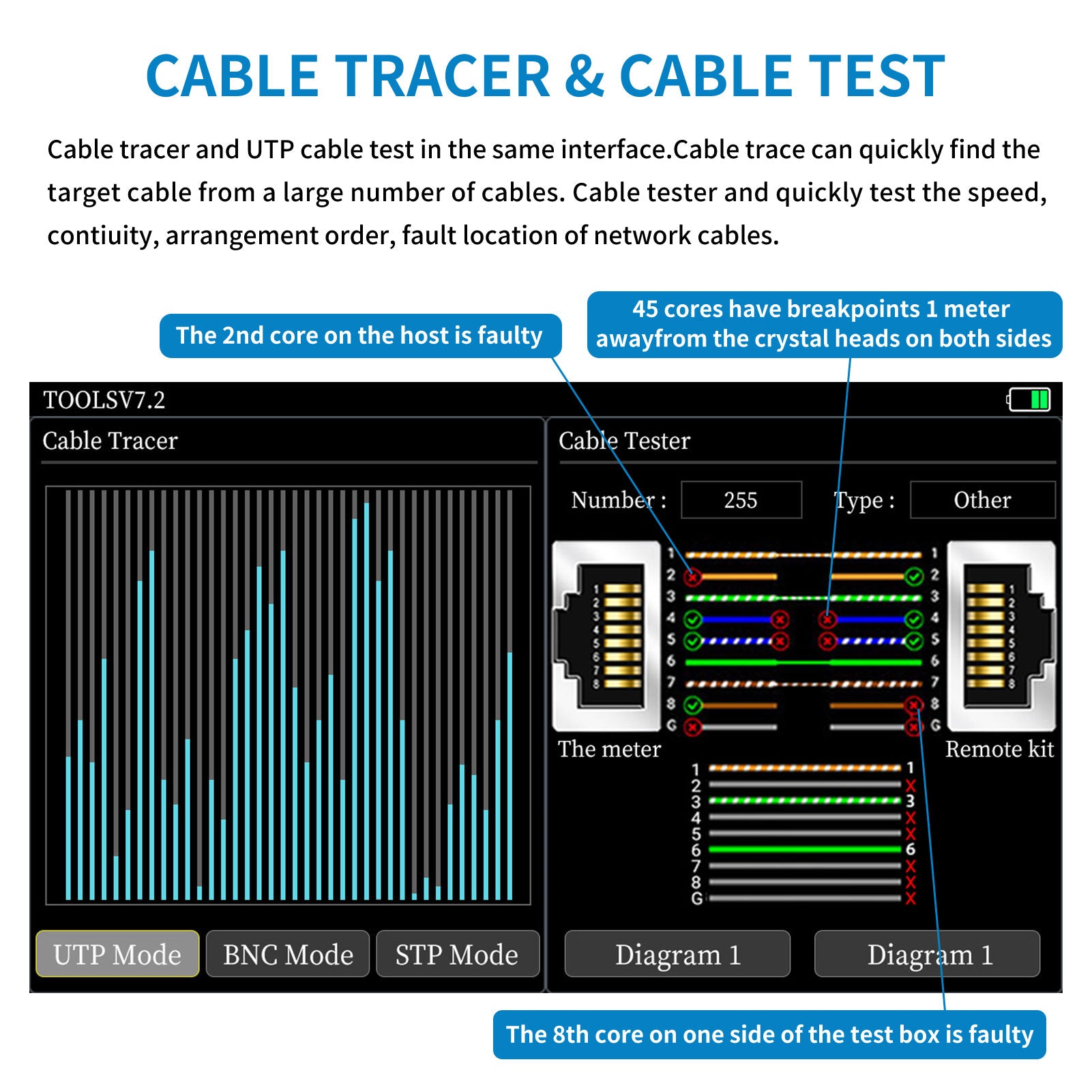

Digital Cable tracer: Search BNC cable, network cable and telephone cable from the mess cables. Cable search and UTP cable can test at the same time |
|
UTP cable test: Test UTP cable connection status and display on the screen. Can detect the near-end, mid-end and far-end fault point of the network cable crystal head. |
|
|
Tester Play |
N/A |
|
Network test |
N/A |
|
Wi-Fi |
N/A |
|
Audio test |
1 channel audio signal input, test whether sound normal. |
|
Power |
Input: DC 5V/1A input, micro USB port |
|
DC output: DC12V/1A power output, supply temporarily power for the camera DC5V/1A power output, supply temporarily power for the home camera and phone. |
|
|
Battery |

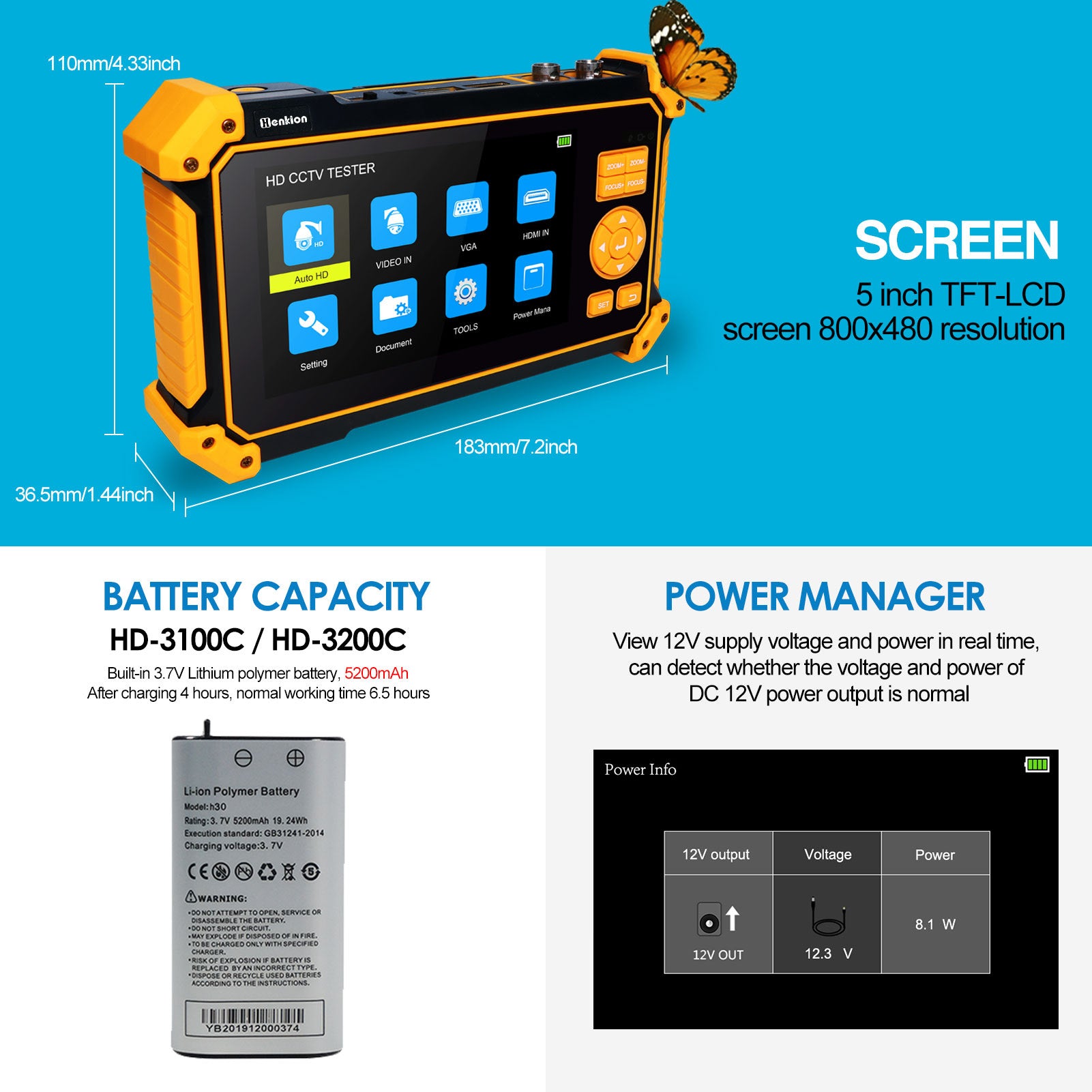

Built-in 3.7V Lithium polymer battery, 5200mAh, 19.24W/h |
|
Rechargeable |
After charging 3-4 hours, normal working time 5-8 hours |
|
OS |
Self-developed operating system (based on Linux) |
|
USB port |
1ch, support reading USB disk and 5V power output |
|
TF card slot |
N/A |
|
Menu language |
English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish, Portuguese, Czech etc |
|
Auto off |
1 to 30 (mins) |
|
Work Temperature |
-10℃ to +50℃ (+14℉ to +122℉) |
|
Work Humidity |
30% to 90% |
|
Package includes |

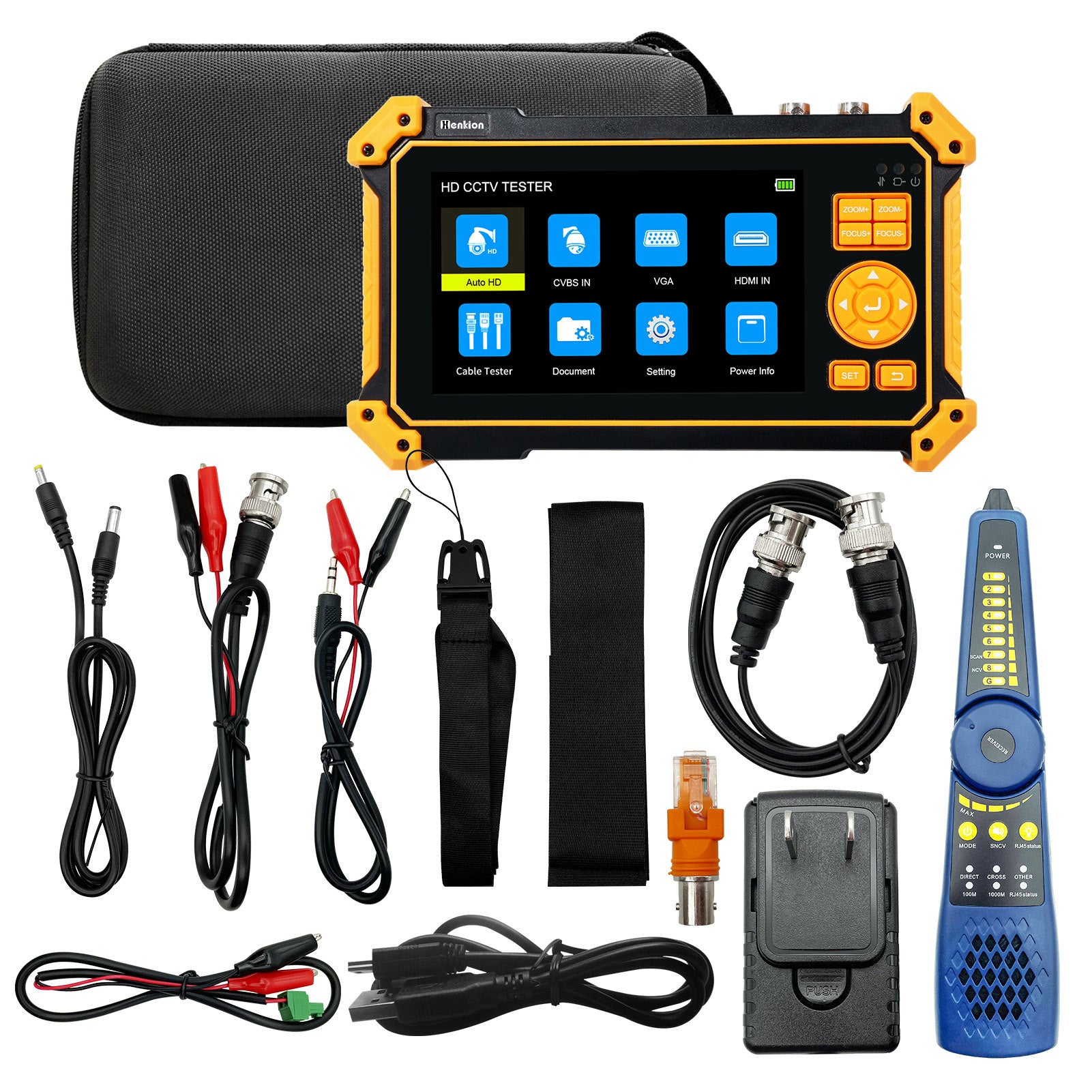

1xTester; 1xPower adapter; 1xCable test box; 1xPower output cable; 1xBNC video cable; 1xRS485 cable; 1xAudio Test cable; 1xTool box; 1xShoulder Strap; 1xWristband; 1x User manual |
|
Dimension |
Package Dimension: 260x143x100mm(10.24x5.63x3.94inch) Tester:183x110x36.5mm(7.2x4.33x1.44inch) |
|
Weight |
Package weight:1.05kg(2.31lbs) Tester net weight: 0.4kg(0.88lb) |
