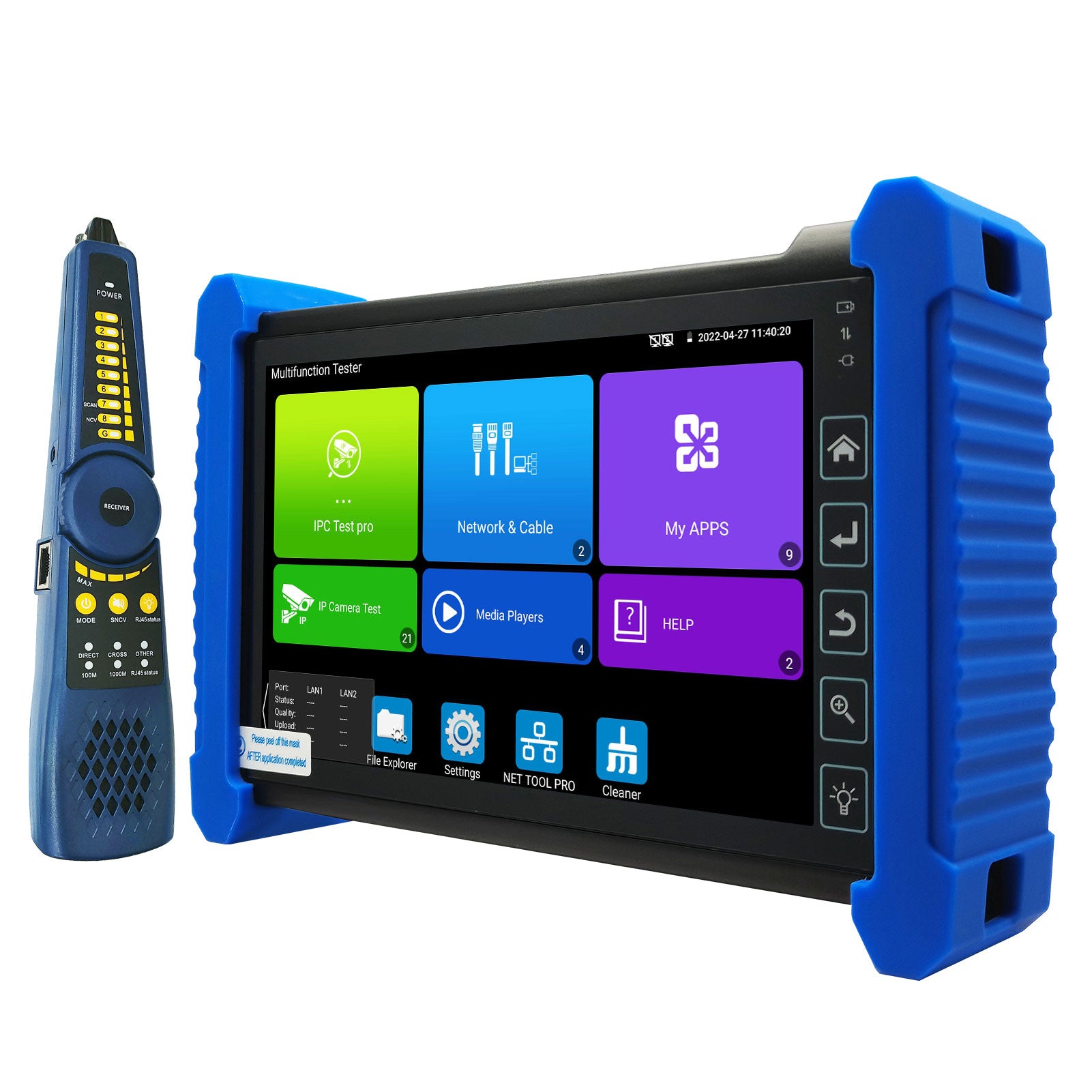

Henkion IPC-7600C Plus 8K security surveillance camera tester is an essential tool for field technicians in the field of security cameras. Used for the installation and maintenance of IP network cameras.

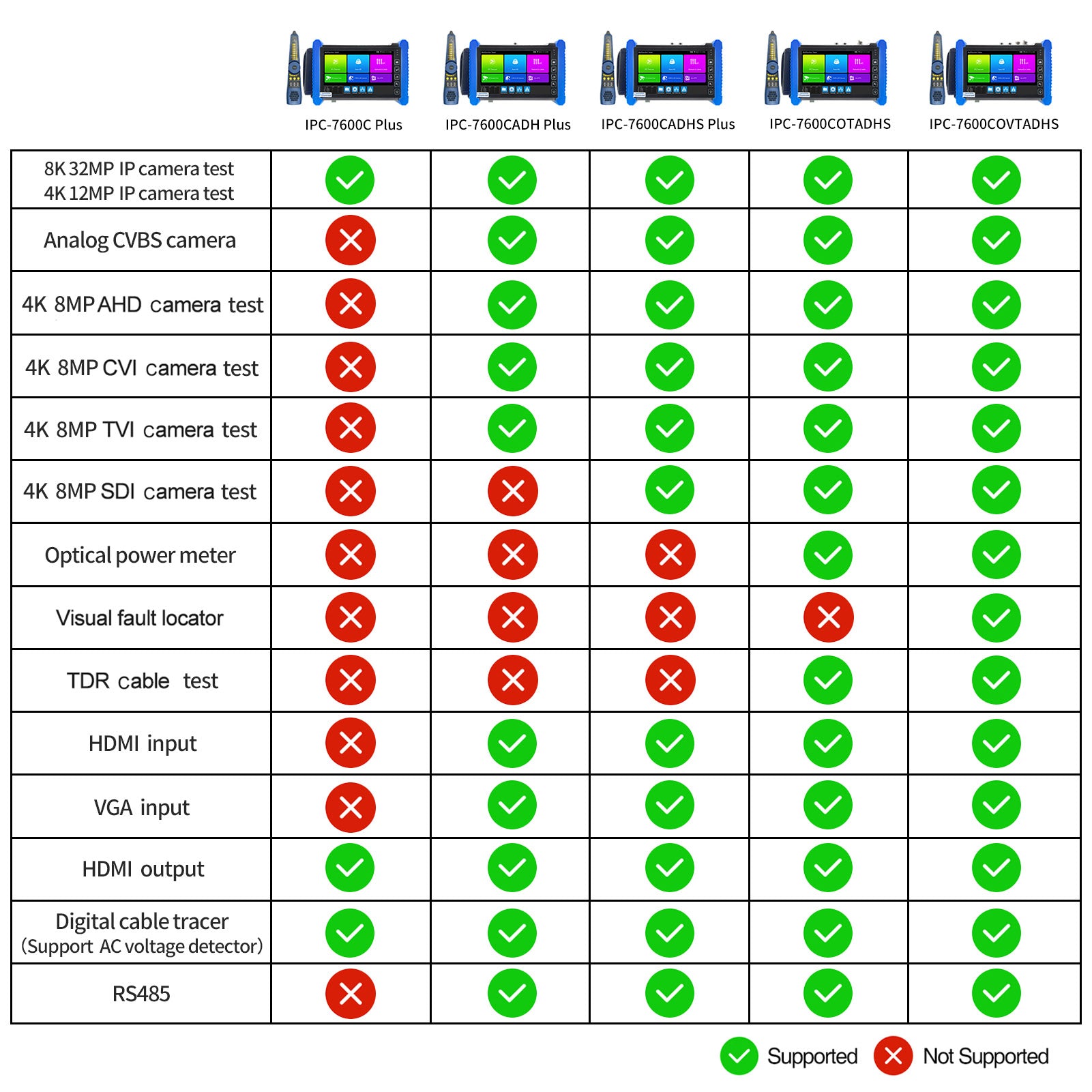

IPC-7600C Plus is Specifically designed for testing IP cameras, although it is an entry-level tester of the IPC-7600 Plus series, the performance is equally astonishing. It can support the testing of a max 8K video mainstream test. It is the best choice when you only need to test the network camera. The tester uses the Android version 9.1 operating system, built-in multiple professional testing APPs, supports automatically update APP after connecting to the Internet, and self-installs APP. POE, cable test, WiFi, power output, and HDMI output are all available. But if you need to test HD CVI TVI AHD CVBS cameras, please purchase other model testers, it does not support testing these types of cameras. You can continue to view the details to learn more.
Parameters
| Brand&Model | Henkion IPC-7600C Plus | ||
| operating system | Android 9.0 | ||

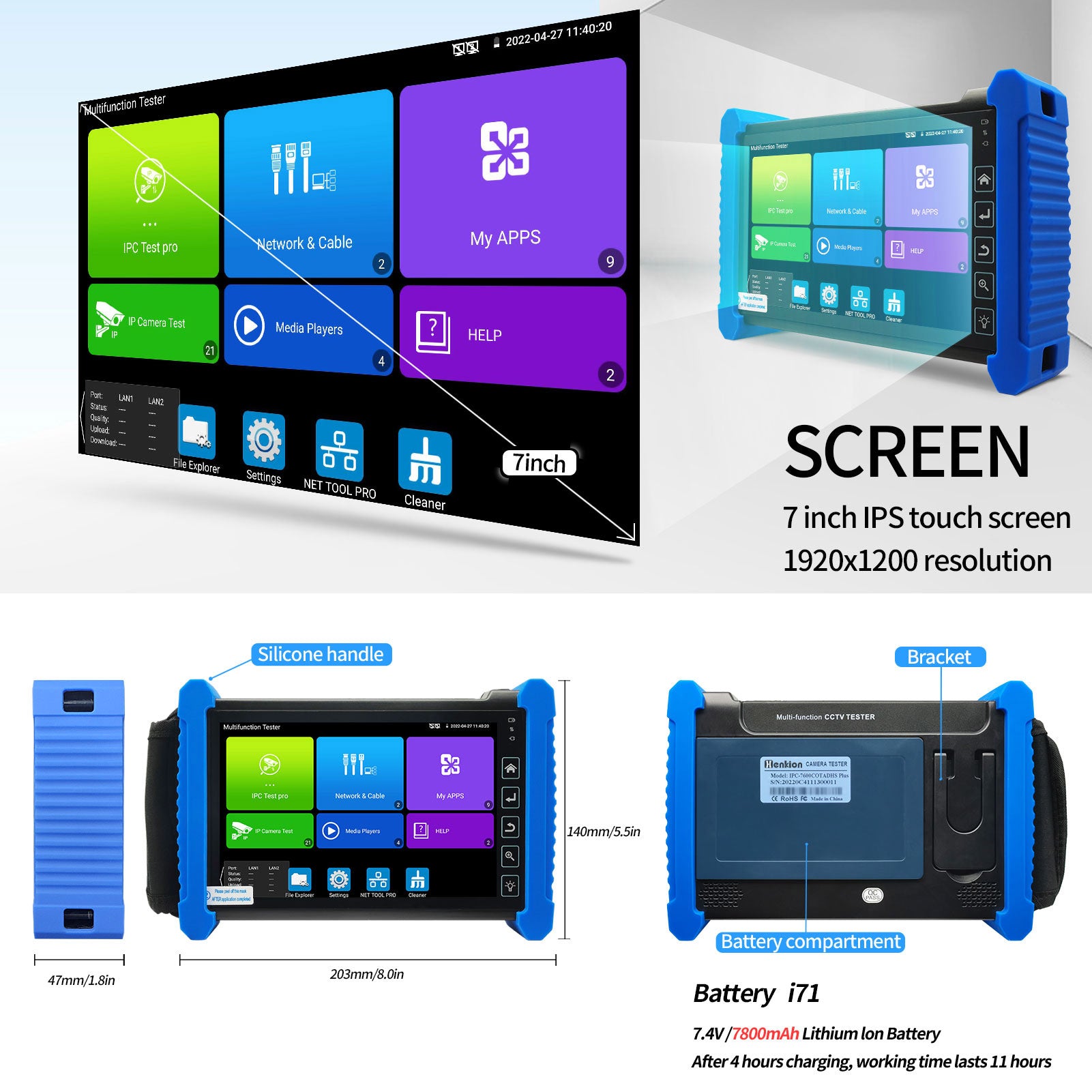

| Display | 7 inch IPS touch screen, 1280*800 resolution | ||
| CVBS camera test | N/A | ||
| main stream test (hardware decoding) |

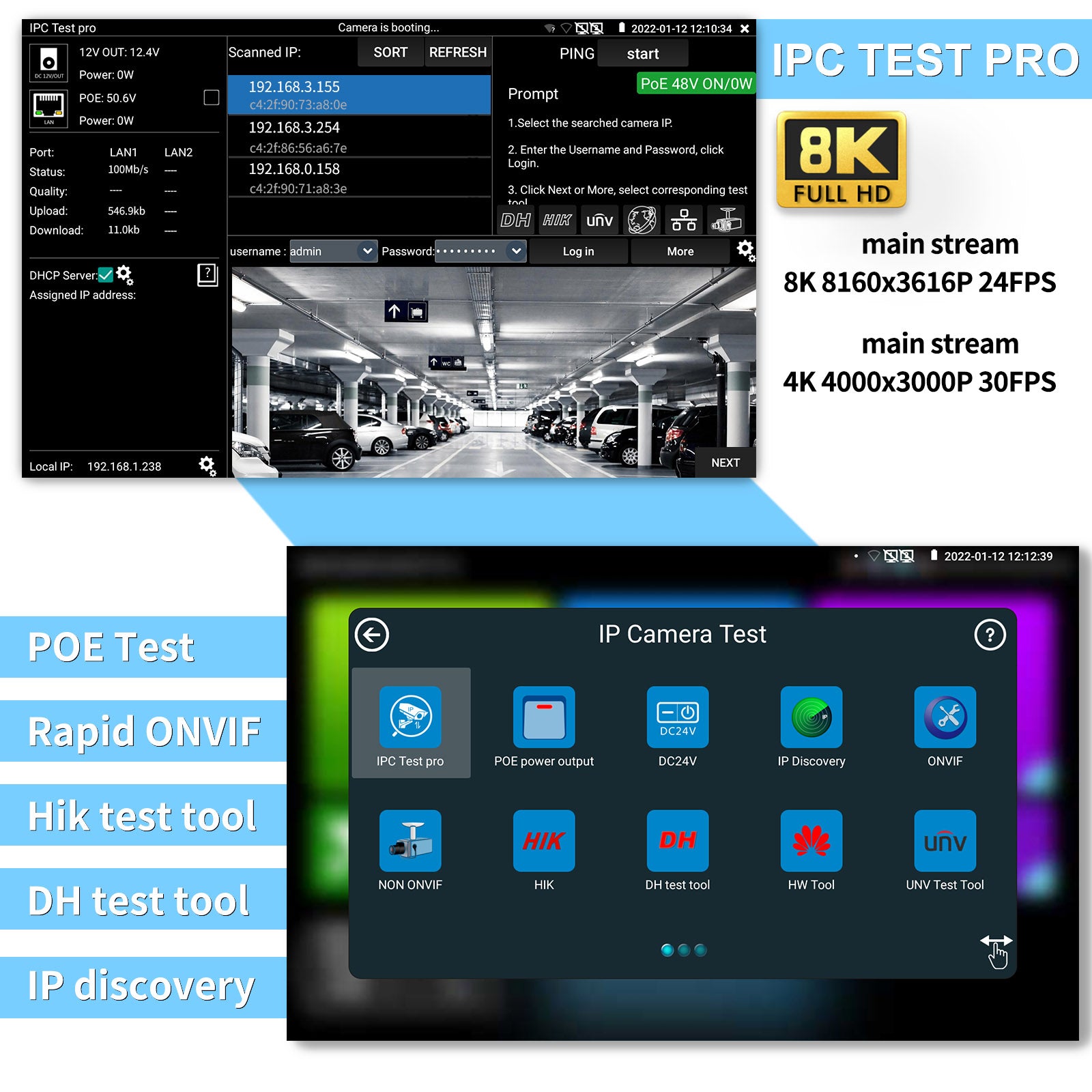

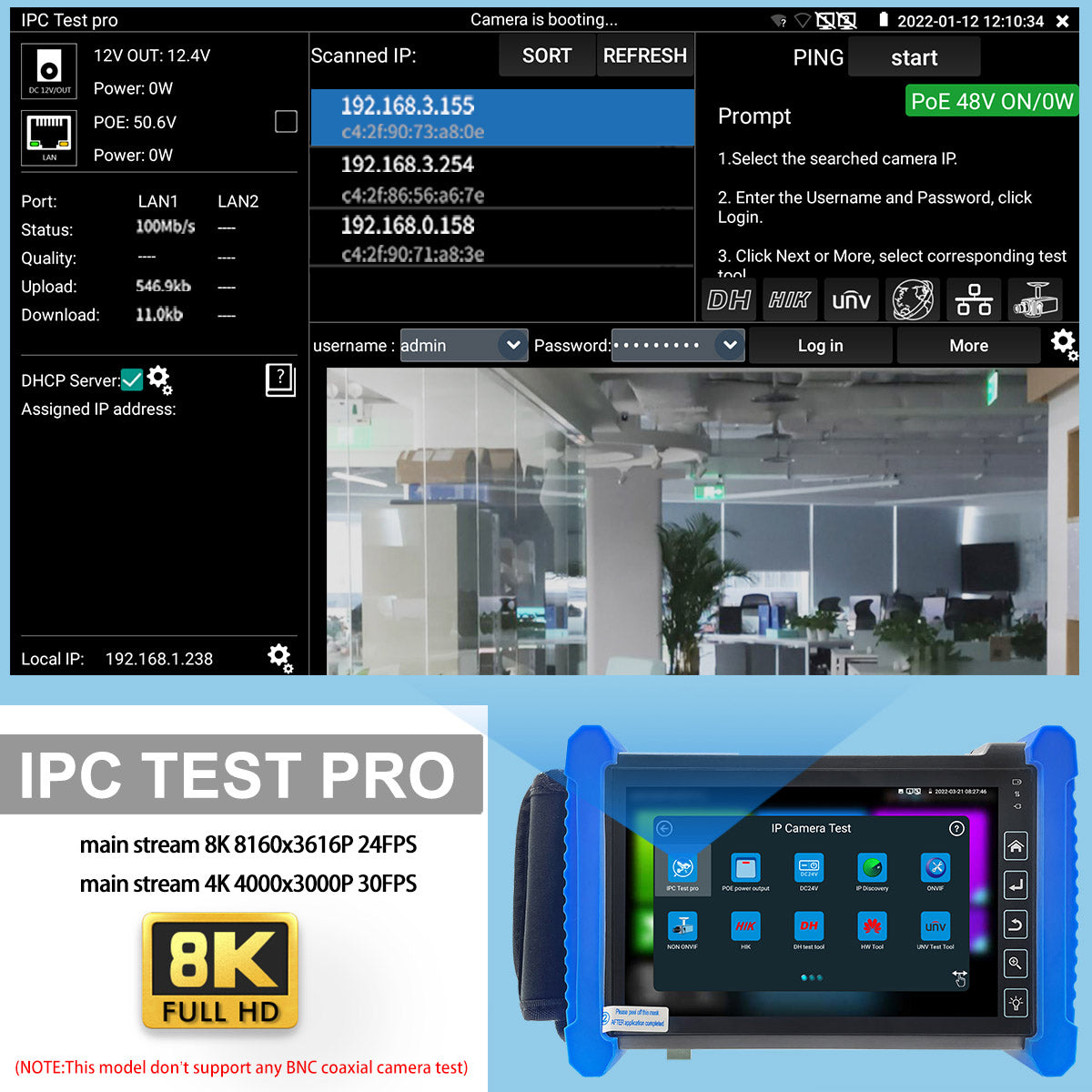

IP camera test main stream supports up to 8K 32MP 8160x3616 24fps resolution | ||
| Network & IP camera test |
DC12V/POE 48V power supply and power detection, network information, IP address search, image display etc. | ||
| Rapid ONVIF:For Onvif camera, auto log in to view video, modify IP, modify channel names, support face recognition and create test reports. | |||
| Non-ONVIF camera test:Support more than 80 brands proprietary Protocol Camera such as AXIS, ACTi, Dahua, Hikvision, Samsung, Tiandi Albert, Keda, Honeywell, Aipu Wharton, Funiteda, Funitech, Forvision, WEISKY, etc. | |||
| Hik test tool:For hikvision camera pressing just one key to activate, Image test, can modify the user name, password, encoding format, IP address, and channel name. Support batch activation, modify video settings, IP address, restore factory settings, reset password, etc. | |||
| DH test tool:For Dahua camera batch activation and image testing, user name, password, IP and channel name can be modified. | |||
| IP discovery:Find the camera's IP address in the all network segment. | |||
| Network test tool:IP scan, Trace route, Link monitor, Link statistics, DHCP server, Port flashing, Ping test, LLDP etc. | |||
| Coaxial HD test | Don't support CVI camera test | ||
| Don't support TVI camera test | |||
| Don't support AHD camera test | |||
| Don't support SDI camera test | |||
| HDMI input | N/A | ||
| HDMI output |
1 channel HDMI output, support max 4K 3840x2160P 60fps 4K 3840×2160P 60/50/30/25/24fps, 4096×2160P 24fps, 1920×1080P 60/50/24fps, 1920×1080i 60/50fps, 1280×720P 60/50fps, 720×576P 50fps, 640x480P 60fps |
||
| VGA input | N/A | ||
| Zoom Image | 4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back | ||

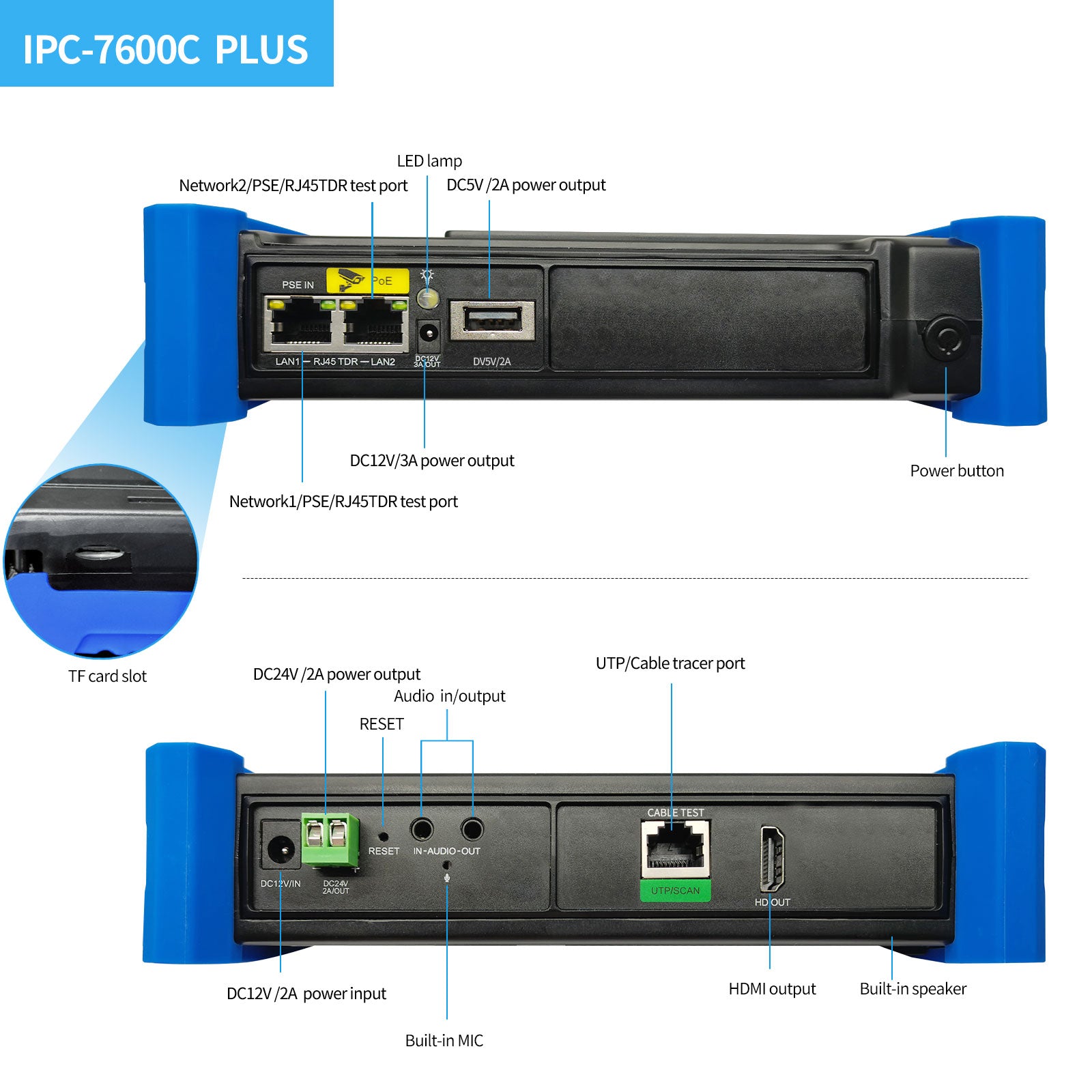

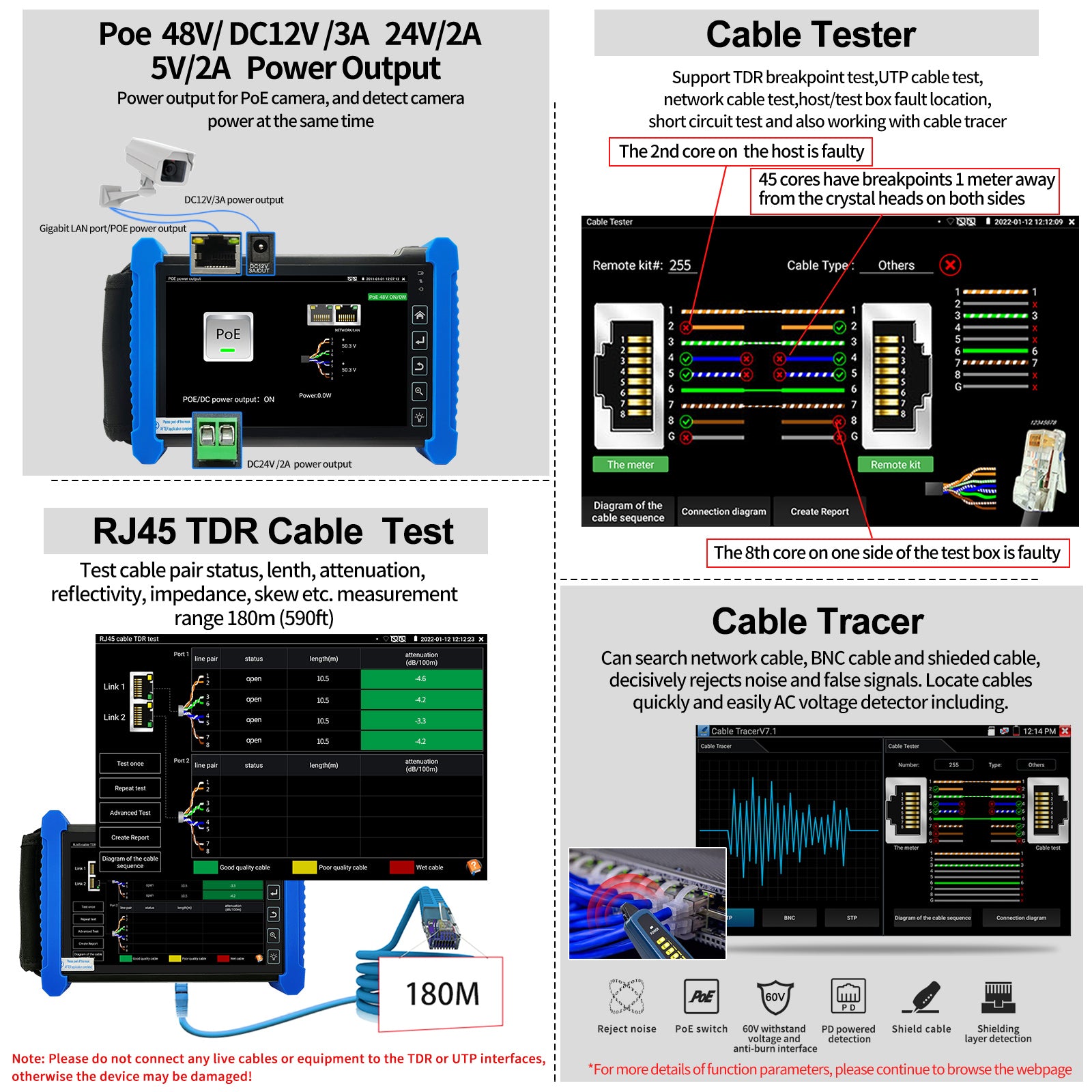

| Power output | DC5V/2A:USB 5V/2A power output, as a power bank | ||
| DC12V/3A:DC12V/3A power out ,supply temporarily power for the camera | |||
| DC24V/2A:DC24V/2A power out ,supply temporarily power for the speed dome camera | |||
| PoE:IEEE802.3af/at 48V PoE power output, max power 30W | |||
| Cable test | Cable tracer:search BNC cable, network cable and telephone cable from the mess cables | ||
| AC Voltage Detector, Voltage range: AC12V-1000V, Frequency: 50/60Hz, Alarm mode: sound and light double alarm, Safety class: CAT.III 1000V / CAT.IV 600V, CE | |||
| UTP cable test:Test UTP cable connection status and display on the screen. Read the number on the screen | |||
| RJ45 cable TDR test:test cable pair status, length, attenuation, reflectivity, impedance, skew etc, measurement range 180M. | |||
| TDR cable test | N/A | ||
| Optical power meter (OPM) |
N/A | ||
| Visual fault locator (VFL) |
N/A | ||
| Analog level test | N/A | ||
| RS485 | N/A | ||

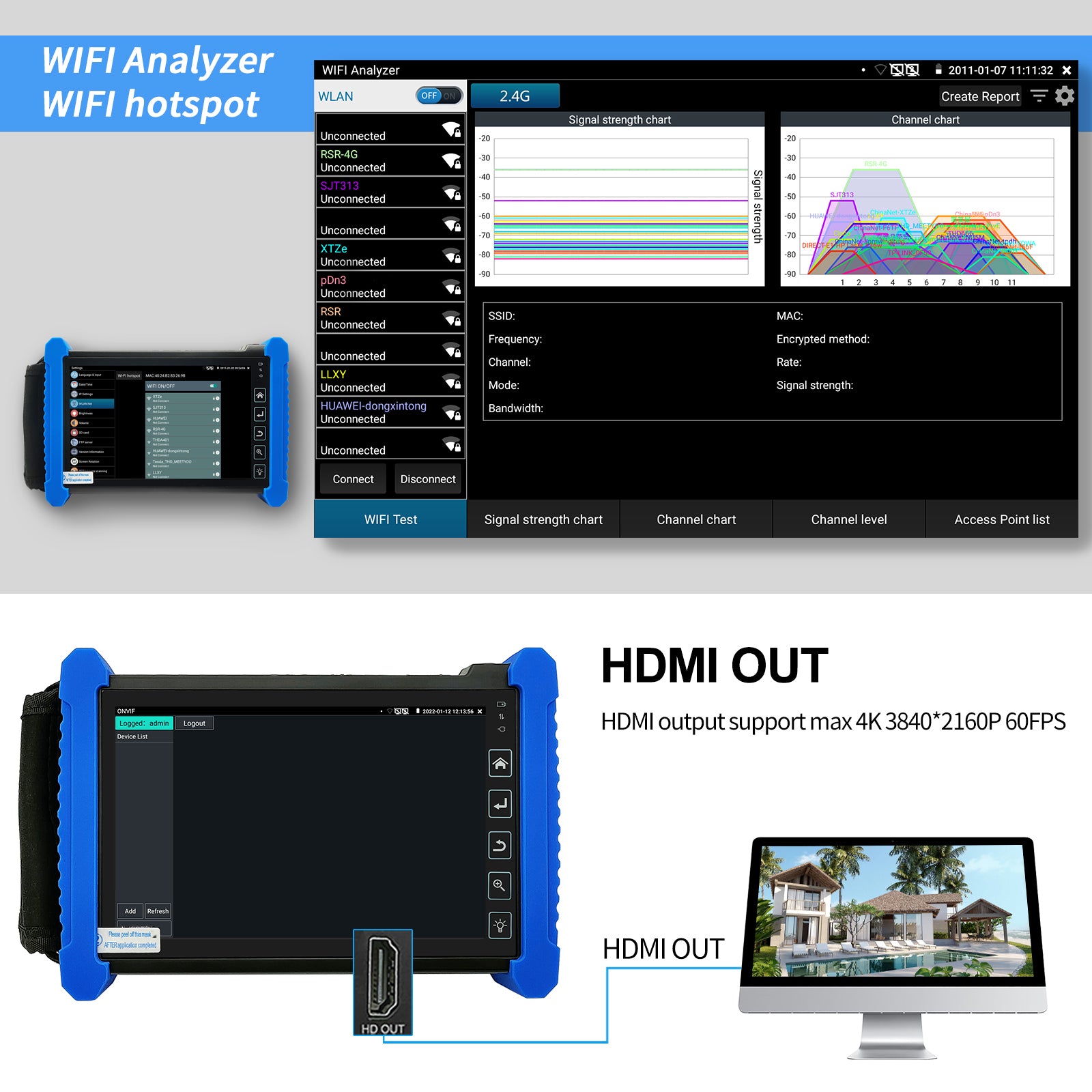

| Wi-Fi | Built-in WIFI, 2.4GHz, speed 150Mbps, display wireless camera image | ||
| Wi-Fi analyzer | Support view wifi information, test wifi strength, analyze channel occupancy and channel level, etc. | ||
| Audio test | 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone | ||
| PoE test | Measurement POE switch or PSE power supply voltage and cable connection status | ||
| Image operate | Support screenshots and video recordings on the test screen, support photo browsing and video playback operations. | ||
| Dropdowns | The dropdowns menu can quickly turn on the PoE power, IP settings, flashlight, HDMI input, Network info etc. | ||
| TesterPlay | screen projection: tester, mobile phone and PC display at the same time (only for android mobile phone) | ||
| TF card slot | Built-in TF card slot, include a 8GB TF card | ||
| Power adapter | DC 12V/2A | ||
| Battery | Built-in 7.4V Lithium polymer battery,7800mAh, 57.72Wh | ||
| Rechargeable | After charging 4 hours, normal working time 11 hours | ||
| Language | OSD menu support language: English, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese, Serbian, Czech, Vietnamese, etc. | ||
| Auto off | 1-30 (mins) | ||
| Working Temperature | -10℃--- +50℃ (14℉---122℉) | ||
| Working Humidity | 30%-90% | ||
| Dimension/Weight | 203x140x47mm(8x5.5x1.85inch) / 900g(1.98lbs) |
