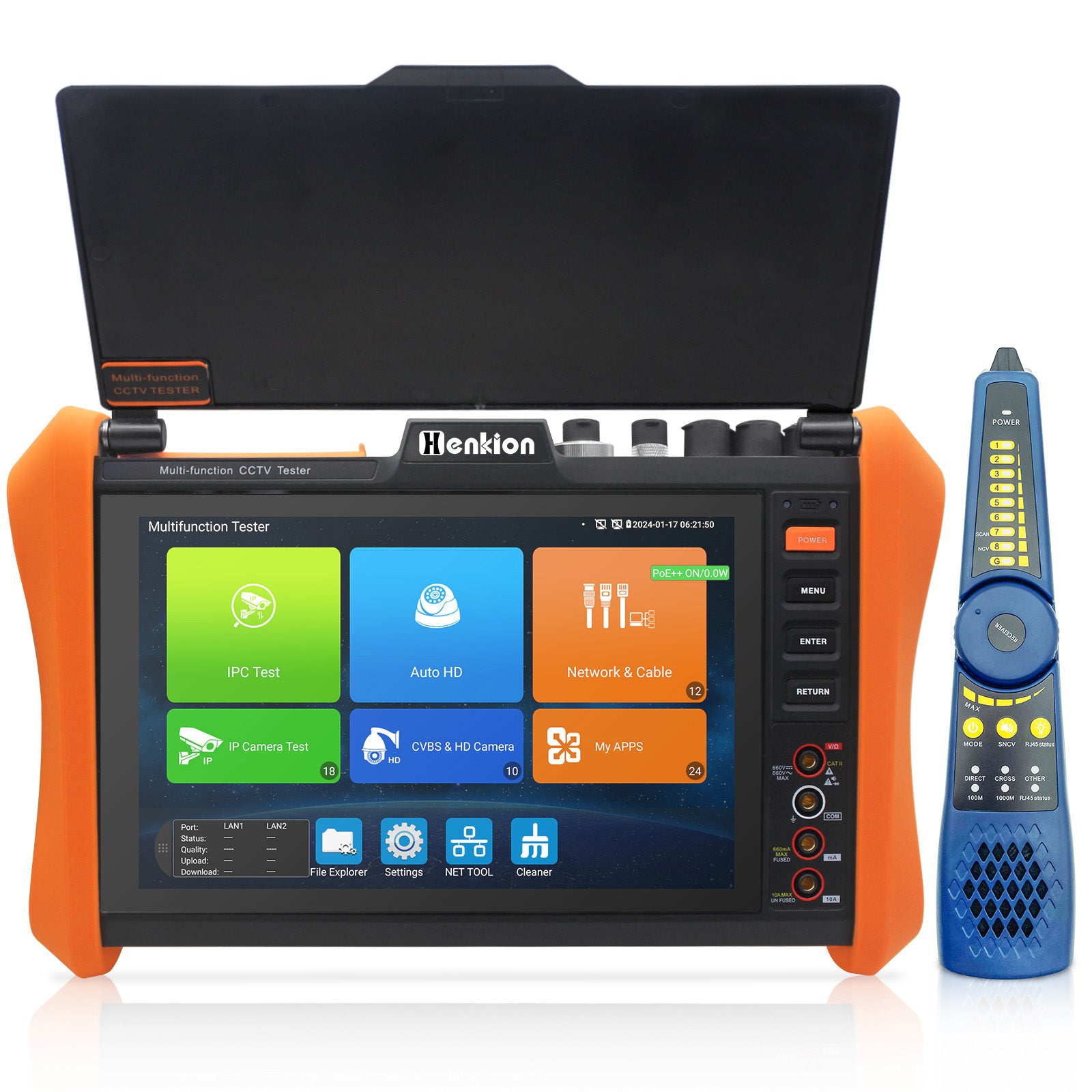

Henkion H12-MOVTADHSEF CCTV Tester supports standard IEEE 802.3af & IEEE 802.3at and POE++, max 60W power output. Provide power supply for high-power PTZ speed dome camera. The Distance Meter supports multiple measurement modes, measurement range of 80m (262 ft).
- Ssupport max 8K 32MP 8160*3616P 4K 12MP 4000*3000P IP Camera tester.

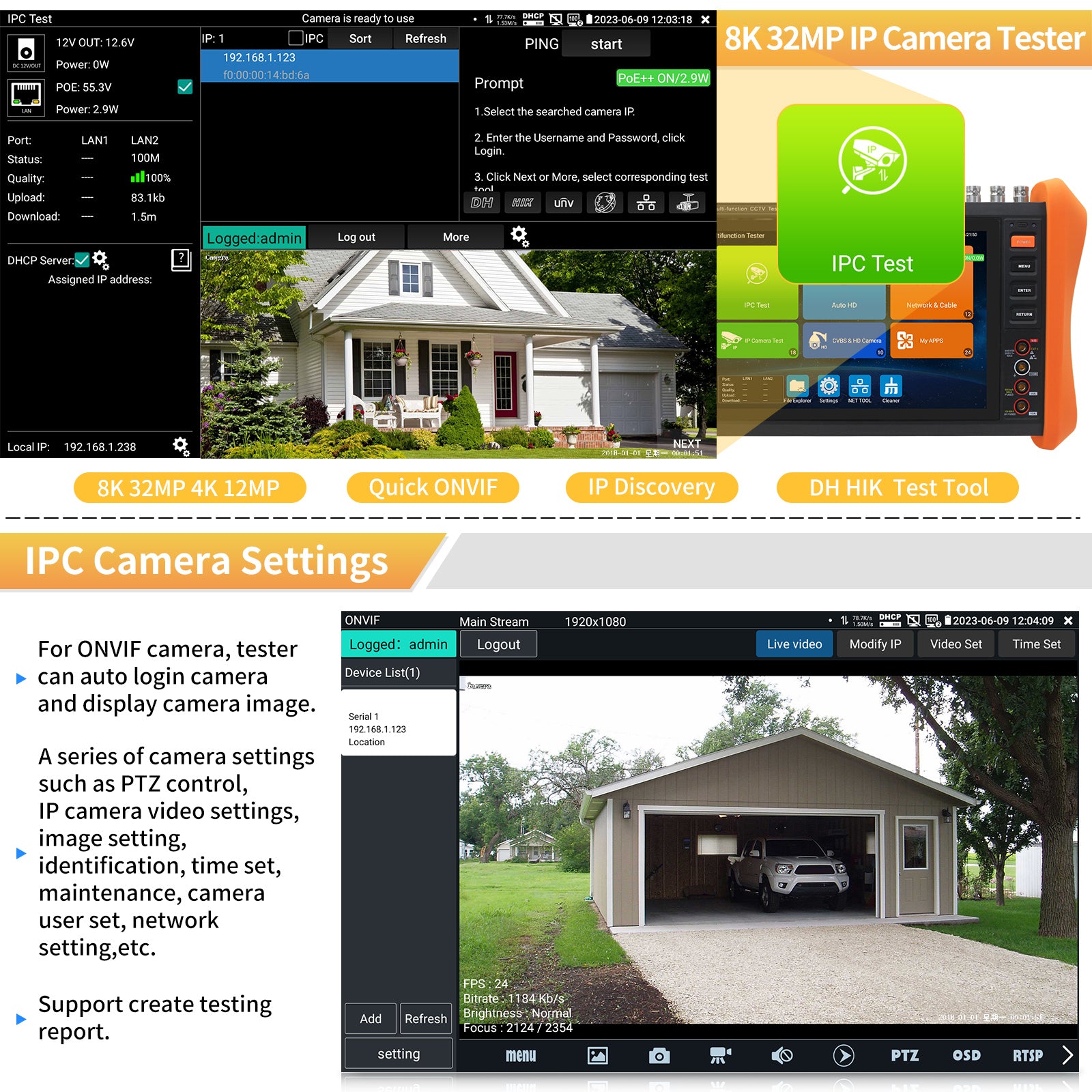

- Rapid Video, auto view the video, IP discovery, CCTV Tester built-in special tools for Hik and DH, and other 3rd brand camera test tools.
- Support batches of fast settings of Hik and DH cameras and are compatible with most existing cameras.
- Network test tool trace route, Link monitor, DHCP server, port flashing, Ping test.

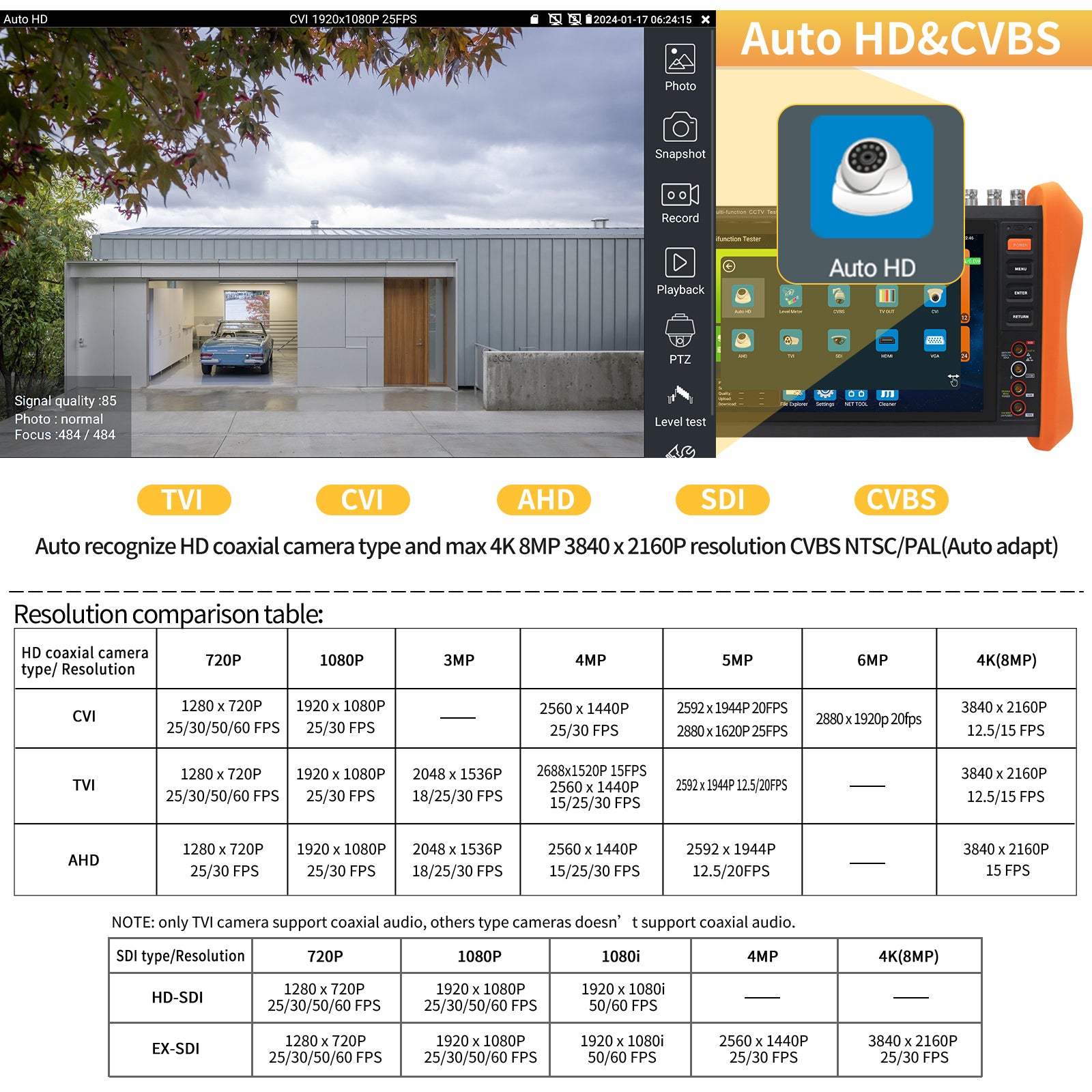

- Built-in "Auto HD" app can recognize max 4K 8MP(3840x2160P) AHD/TVI/CVI/SDI/CVBS coaxial cameras.
- CCTV tester monitor supports UTC/PTZ control and calls OSD menu. Coaxial leve meter, Color bar generator.
- UTP cable test. RJ45 TDR cable.
- 8-inchIPS touch screen IPC Tester,1920x1200 resolution, Android 11.0 system.
Parameters
| Brand | Henkion |
| Model | IPC-H12-MOVTADHSEF |
| Operating system | Android 11.0 |
| Display | 8 inch IPS touch screen, 1920x1200 resolution, Backlit buttons |
| Operation method | Touch screen + keys |
| CPU | 2.0GHz, 4 cores |
| RAM(DDR) | 2GB |
| FLASH(EMMC) | 16GB |
| IP camera test | Support max 8K 32MP 24FPS IP camera test, Support ONVIF protocol |
| IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK | |
| Rapid Video: Auto view the video, create testing report | |
| Hik test tool: support batch activate for Hikvision cameras and modify IP address, modify password etc. Self-defined modify channel name, can quickly change video, open wide dynamic mode. Factory restore, etc. | |
| DH test tool: support batch activate for Dahua cameras and modify IP address, username and password. Self-defined modify channel name. | |
| Coaxial HD camera test |
TVI camera test, support coaxial audio, UTC control & call OSD menu 4K/8MP_3840x2160p 12.5/15fps, 5MP_2592x1944p12.5/20fps, 4MP_2688x1520p 15fps,4MP_2560x1440P 15/25/30fps, 3MP_2048x1536p 18/25/30fps,1920x1080p 25/30fps,1280x720p 25/30/50/60fps |
|
CVI camera test, support UTC control & call OSD menu 4K/8MP_3840x2160p 12.5/15fps,6MP_2880x1920p 20fps, 5MP_2592x1944P 20fps,5MP_2880 x1620P 25 fps,4MP_2560x1440p 25/30fps,1920x1080p 25/30fps,1280x720p 25/30/50/60fps |
|
|
AHD camera test, support UTC control & call OSD menu 4K/8MP_3840x2160p 15fps, 5MP_2592x1944p12.5/20fps, 4MP_2560x1440p 15/25/30fps, 3MP_2048x1536p 18/25/30fps,1920x1080p 25/30fps,1280x720p 25/30fps |
|
|
EX-SDI camera test, support UTC control & call OSD menu 3840x2160p 25/30fps,2560x1440p 25/30fps,1920x1080p 25/30/50/60fps,1920x1080i 50/60fps,1280x720p 25/30/50/60fps HD-SDI camera test 1920x1080p 25/30/50/60fps,1920x1080i 50/60fps,1280x720p 25/30/50/60fps |
|
| Coaxial test | 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt) |
| Analog video level meter, peak video signal level, SYNC signal level | |
| Max 4K 3840x2160 15FPS HD CVI TVI AHD color bar test, CVBS PAL/NTSC color bar test | |
| PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc | |

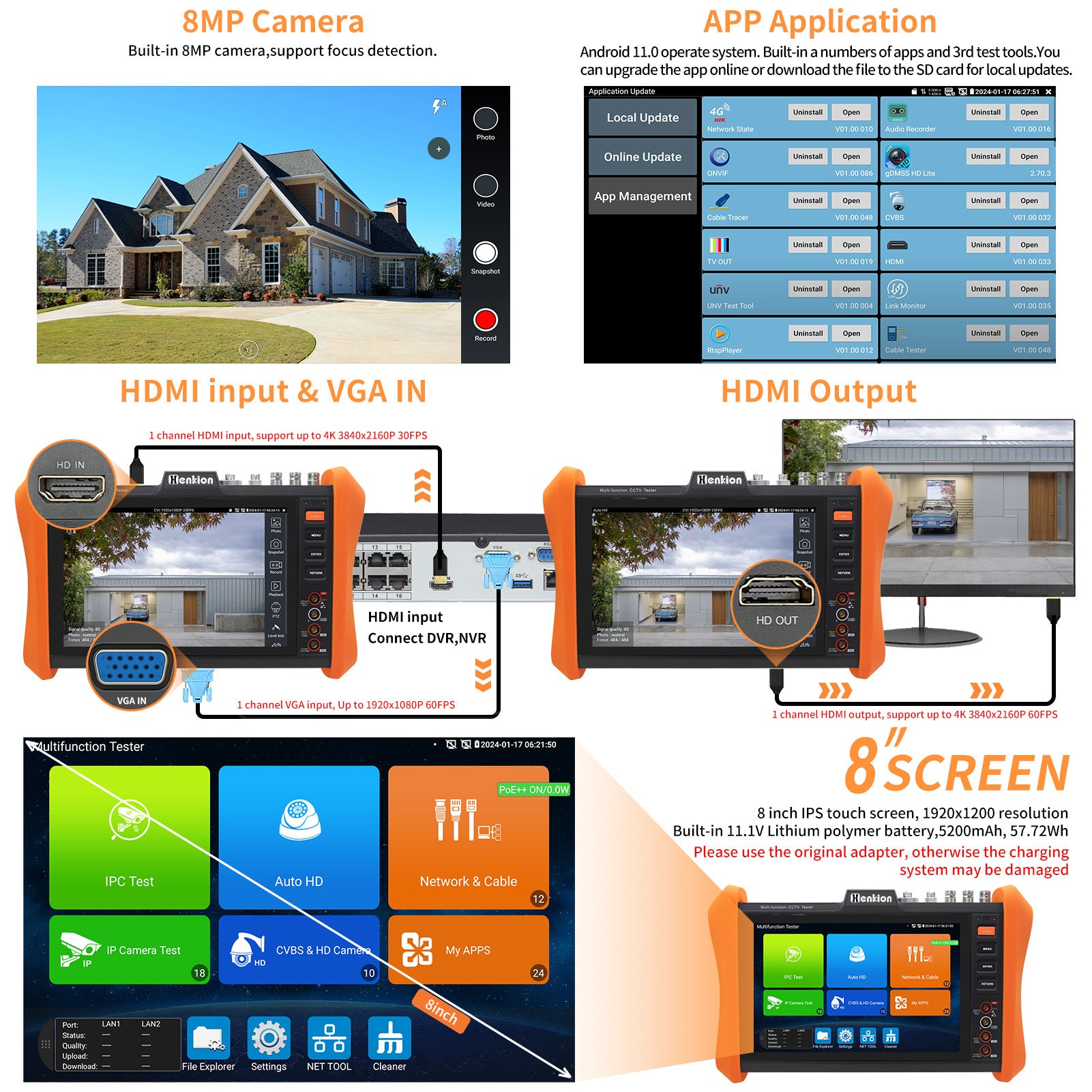

| HDMI & VGA | 1 channel HDMI input, support up to 4K 3840x2160P 30FPS |
| 1 channel HDMI output, support up to 4K 3840x2160P 60FPS | |
| 1 channel VGA input, Up to 1920x1080P 60FPS | |
| Zoom Image | 4x zoom, enlarge image, Screen snapshot, record, save, view and record, and play back |

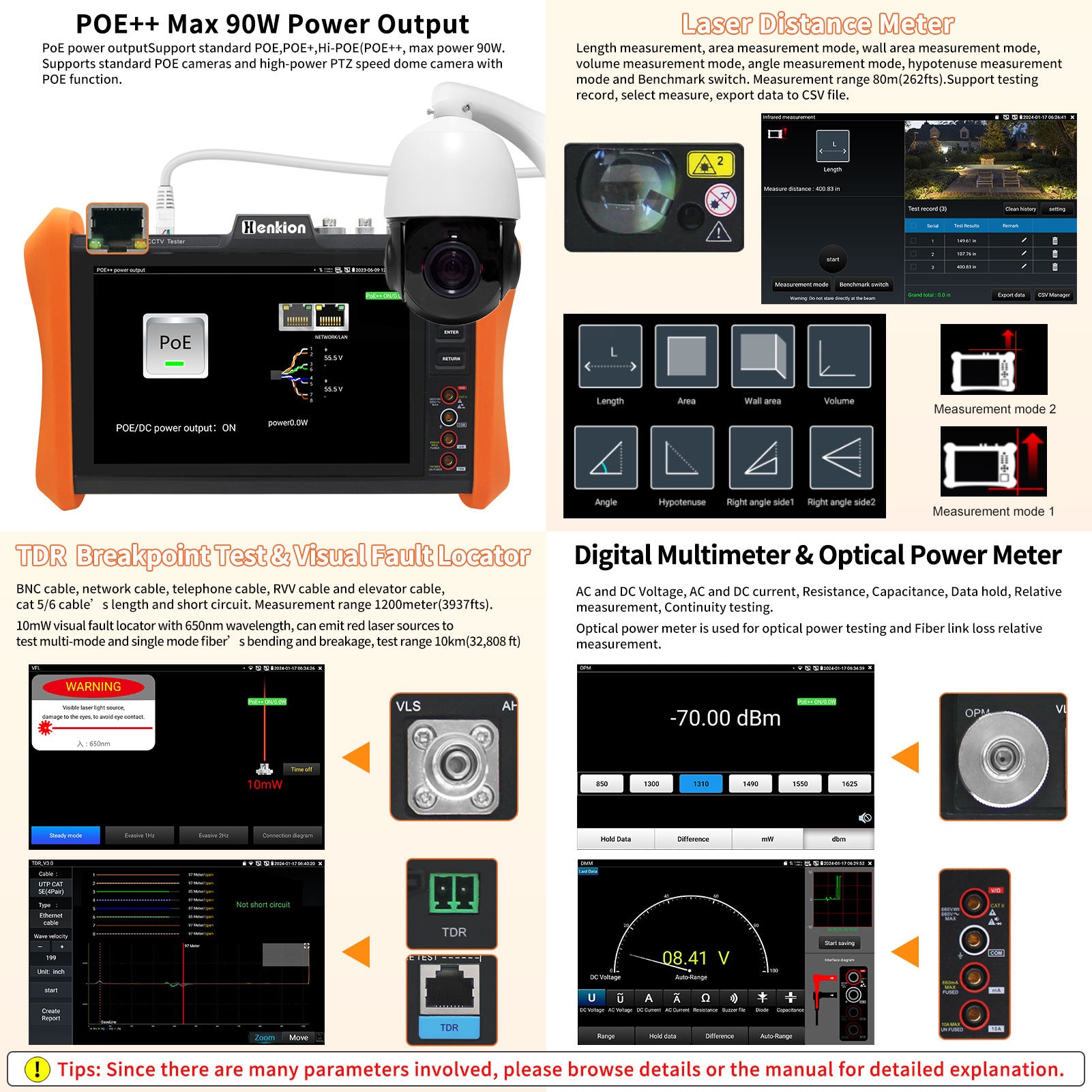

| Power output | PoE power output: Support standard POE, POE+,Hi-POE(POE++, max power 60W. Supports standard POE cameras and high-power PTZ speed dome camera with POE function) |
| DC24V/2A power output | |
| DC12V/3A power output | |
| DC5V/2A power output, powered USB canera and as power bank, and connect USB and Mouse, | |
| Cable test | TDR cable test: BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. Measurement range 1200meter(3937fts) |
| Cable tracer: Contains a digital cable tracer. Search BNC cable, network cable and telephone cable from the mess cables. Support AC voltage detector: voltage range: AC12V-1000V, Frequency: 50/60Hz, Alarm mode: sound and light double alarm, Safety class: CAT.III 1000V / CAT.IV 600V;CE |
|

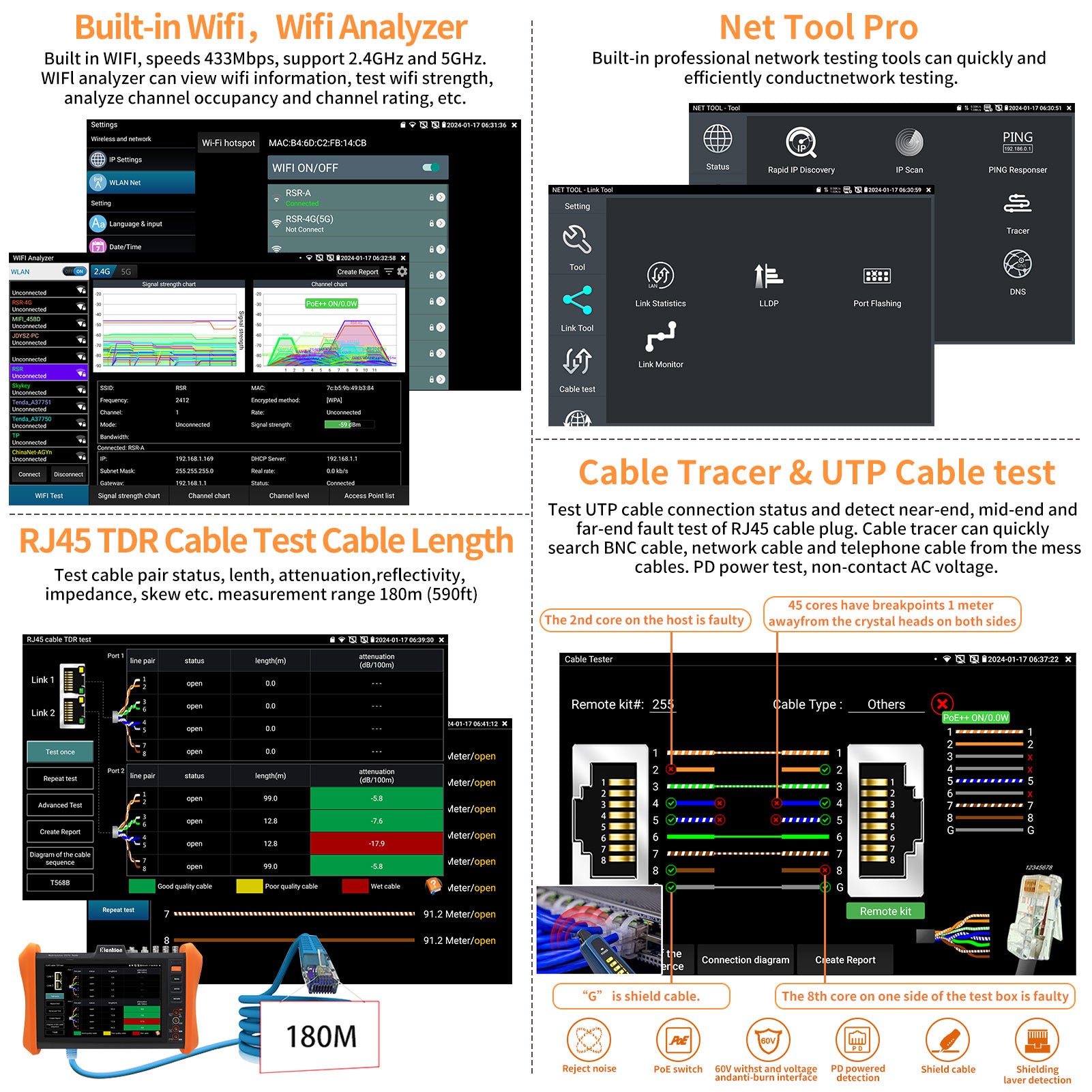

| UTP cable test: Test UTP cable connection status and display on the screen. Read the number on the screen, and detect near-end, mid-end and far-end fault test of RJ45 cable plug | |
| RJ45 cable TDR test: Test cable pair status, length, attenuation, reflectivity, impedance, skew etc. measurement max range 180meter(590fts). | |
| Cable length test: Measure the disconnection (open circuit status) position of BNC cables, network cables, telephone lines and other cables. The maximum test distance is 3KM(9842fts). Short circuit length detection is not supported. | |
| Digital Multimeter (DMM) |
AC and DC Voltage, AC and DC current, Resistance, Capacitance, Data hold, Relative measurement, Continuity testing. Testing speed: 3 times/ seconds, Data range -6600 to +6600. DC&AC voltage measurement(V): the highest range is 660V, the accuracy is ±0.3%+4(DC)/±0.8%+6(AC), resolution is 100mV; DC&AC current measurement(A): the highest range 10A, accuracy ±(1%+5), resolution 10mA; Resistance measurement(Ω): the highest range is 66MΩ, the accuracy is ±(1.2%+2), the resolution is 10KΩ,the Lowest range is 660Ω, the accuracy is ±(0.8%+5), the resolution is 0.1Ω; capacitance measurement(F):the highest range is 66mF, the accuracy is ±(5%+8), the resolution is 10uF, the Lowest range is 6.6nF, the accuracy is ±(0.5%+20), the resolution is 1pF; Diode measurement;At the same time, the tester's multimeter can continuity testing. Automatically adjust 0. |
| Optical power meter (OPM) |
Wavelength: 1625,1550nm,1490nm,1310nm,1300nm,850nm, measurement range, -70 to +10 dBm, Measurement accuracy: <±3%dB (-10dBm, 22℃), <±5%dB (full scale, 22℃) Display resolution: Linear display 0.1%, logarithmic display 0.01dBm Connector: Active FC/PC |
| Visual fault locator (VFL) |
10mW visual fault locator with 650nm wavelength, can emit red laser sources to test multi-mode and single mode fiber’s bending and breakage, test range 10km(32,808 ft), Connector: Active FC/PC |

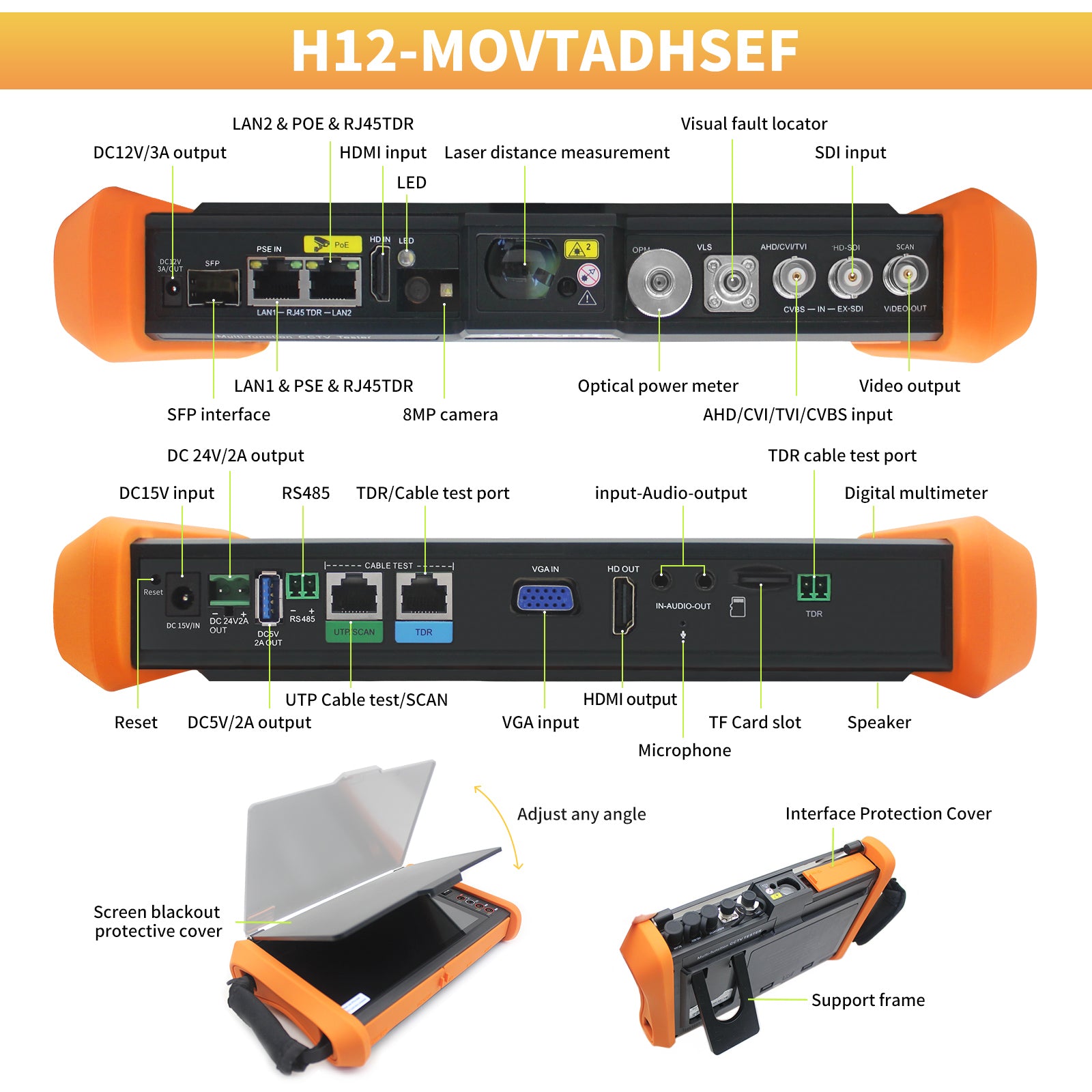

| Network interface | Dual Gigabit Ethernet ports, RJ45, 10/100/1000M adaptive interface |

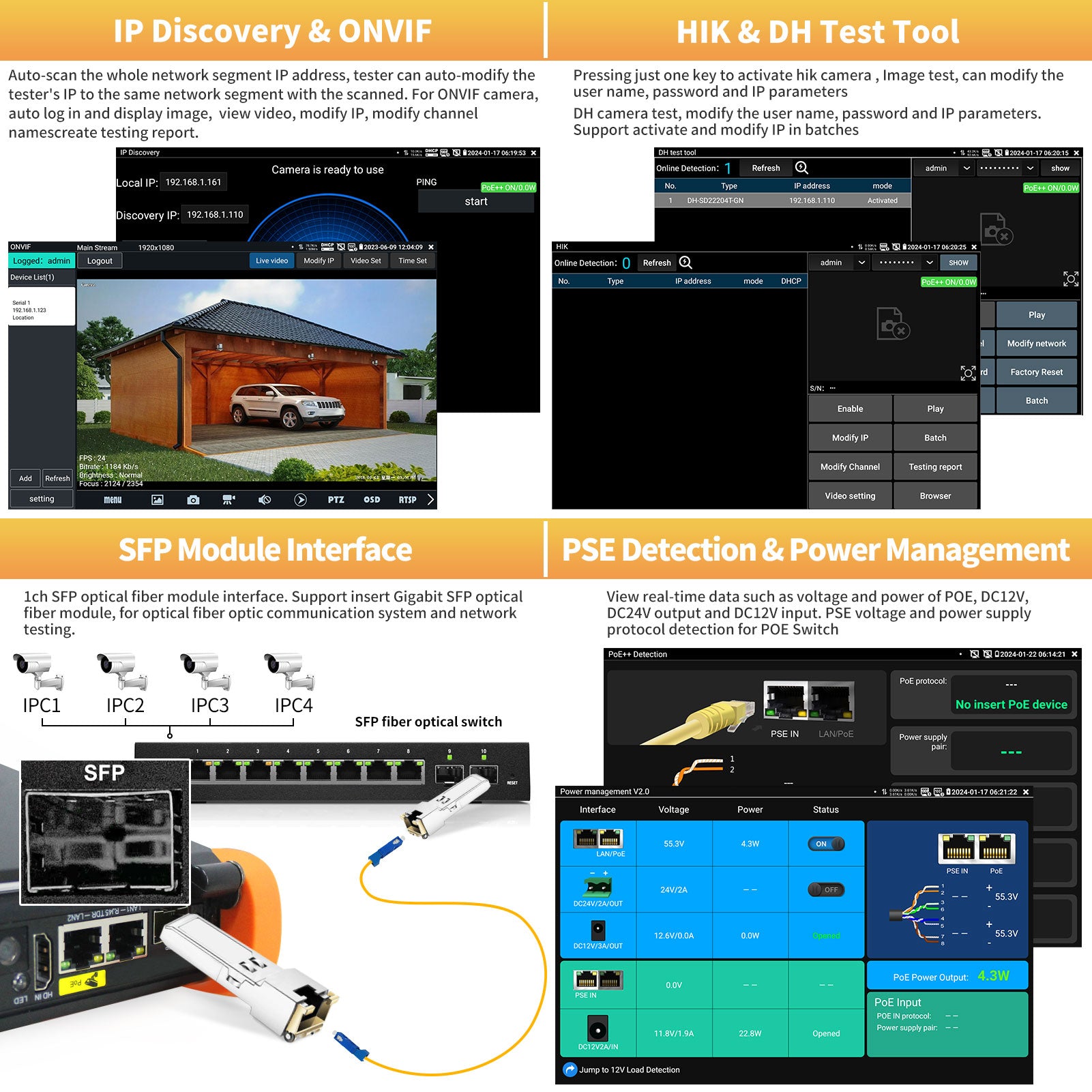

| Gigabit SFP | 1ch SFP optical fiber module interface, support insert Gigabit SFP optical fiber module, for optical fiber network testing |
| Network test | Trace route, Link monitor, DHCP server, port flashing, Ping test |
| WiFi | Built in WIFI, speeds 433Mbps, support 2.4GHz and 5GHz |
| WiFi analyzer | Built-in WIFl analyzer can view wifi information, test wifi strength, analyze channel occupancy and channel rating, etc. |
| Built-in camera | Pixels: 8MP, support camera focus detection |
| Laser Distance meter | Measurement range 80m(262fts), accuracy±3mm, Laser class 2, Laser type 635nm, Power output <1mW |
| TesterPlay | Screen projection: Tester, mobile phone, and PC display at the same time (iOS devices not supported) |
| Audio test | 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect the headphone |
| Data monitor | Captures and analyzes the command data from controlling device, also can send hexadecimal |
| Power management V2.0 | View real-time data such as voltage and power of POE, DC12V, DC24V output and DC12V input. PSE voltage and power supply protocol detection for POE Switch |
| Drop-down menu | You can select PoE power switch, IP setting, CVBS, LAN info, HDMI IN functions etc in any interface |
| Operation setting | OSD menu, select your desired language: English, Portuguese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Turkish, Deutsch, Serbain, Czech, Vietnamese etc |
| Screen blackout protective cover | Yes |
| External power supply | DC12V/2A |
| Battery | Built-in 7.4V Lithium polymer battery, 7800mAh, 57Wh |
| Rechargeable | After fast charging 3.5 hours, normal working time 11 hours(Without supplying power to other devices) |
| Auto off | 5 to 30 (mins) |
| Working Temperature | -10℃ to +50℃ (14℉ to 122℉) |
| Working Humidity | 30% to 90% |
| Dimension/Weight |
Tester: 275x170x48mm(10.83x6.7x1.89inch) / 1320g(2.91lbs) Package: 340x300x95mm(13.39x11.81x3.74inch) / 2570g(5.67lbs) |
