OTDR fiber optical tester provides a wavelength of 1310/1550nm and a dynamic range of 28/26dB, the max test distance of 150km. For auto range mode: only select the wavelength and test time, and quickly perform the test.For parameters setting mode: Testing after setting parameters distance scope, pulse width, duration of measurement, etc. Curvest/map are displayed simultaneously.
Pls note: This mode doesn't support live test. The 1610nm upport live test will be more expensive.

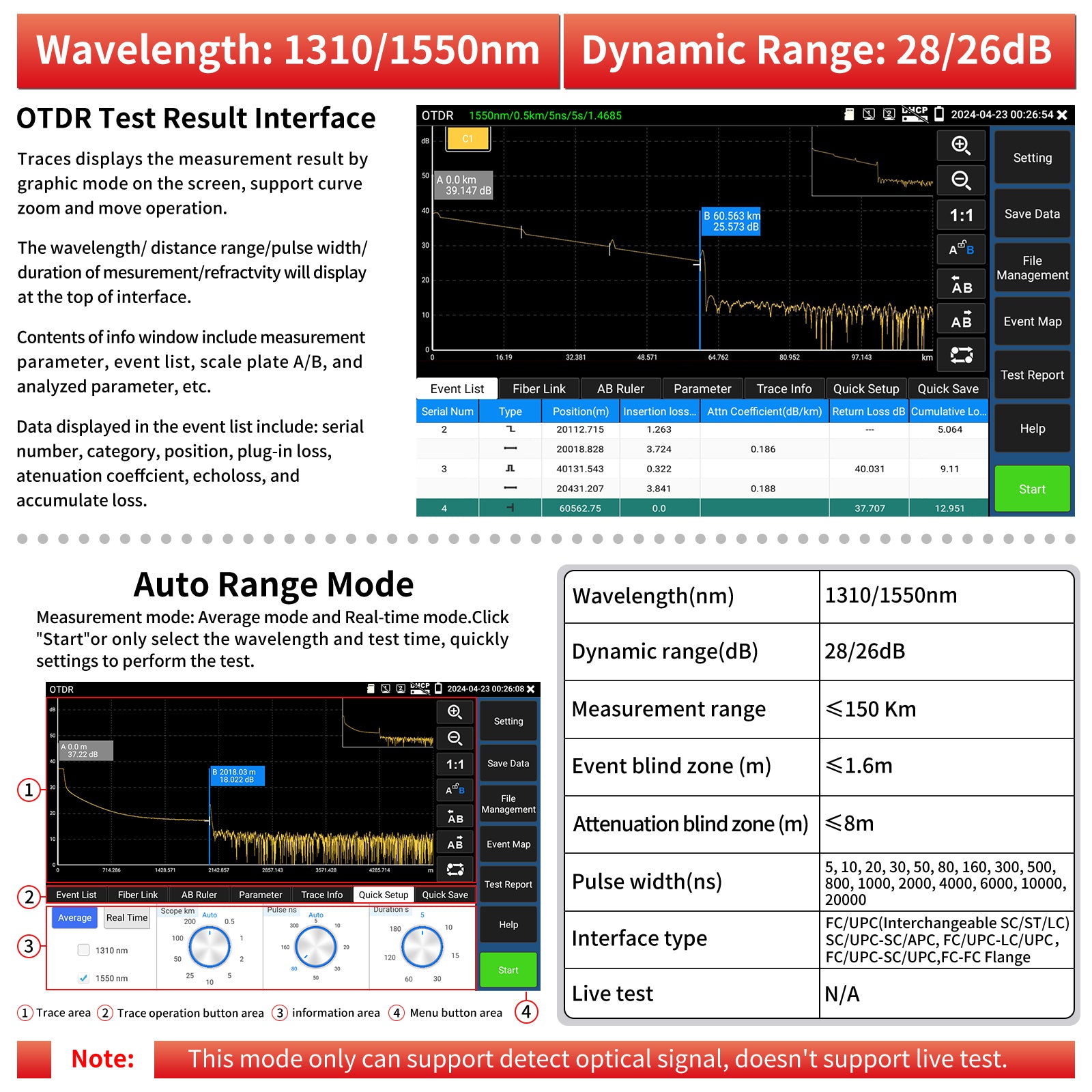

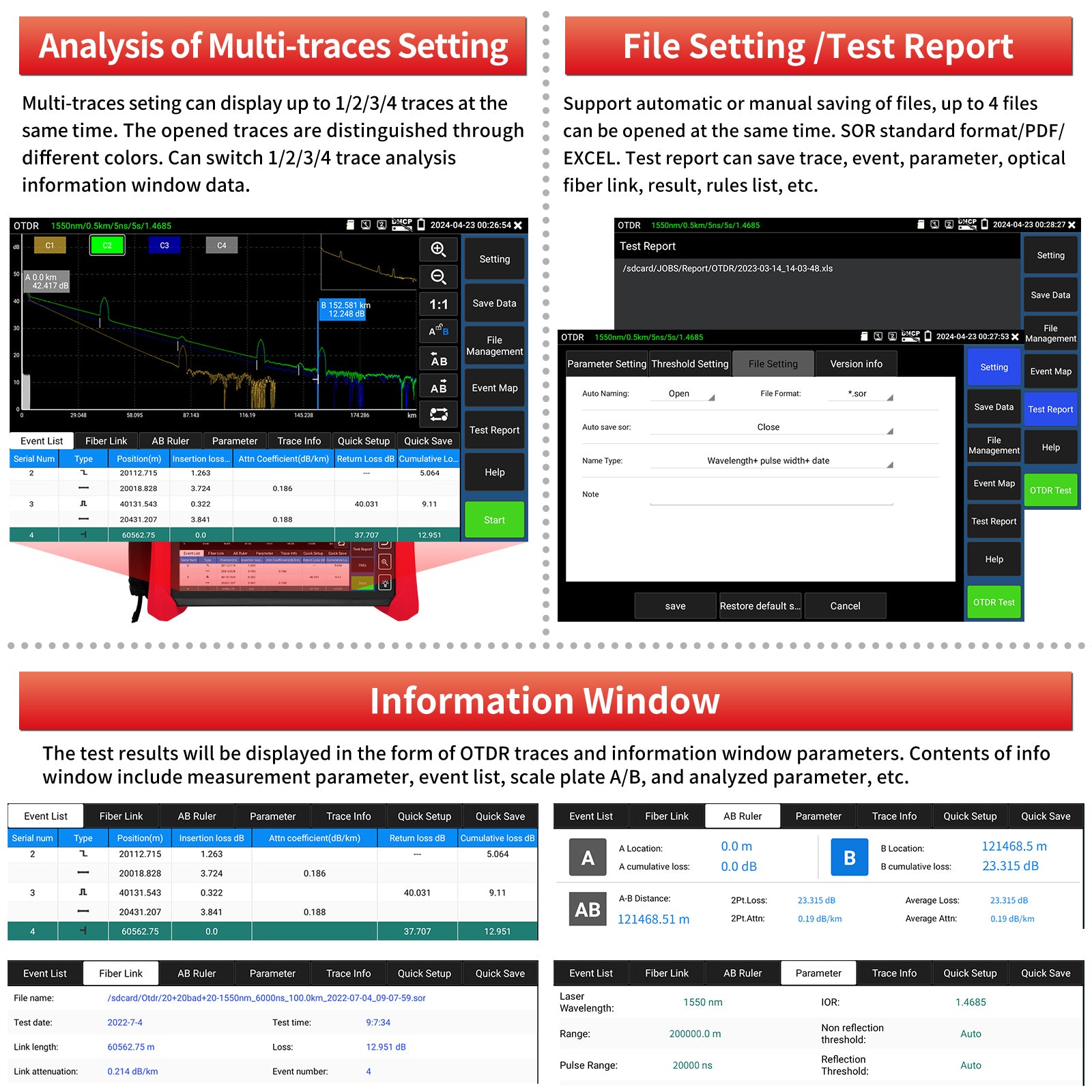

The OTDR fiber tester can analyze the curve automatically, touch screen zoom, or move curves operation. The tested results are displayed in the form of a list. Event list clearly reflects the type of event, distance, loss, decay, and reflection. Shortest event dead zone (1.6m) and attenuation dead zone (8m). Save the current one or more curve trajectory graphs, and create trace reports to the storage path. SOR standard file format PDF/EXCEL.

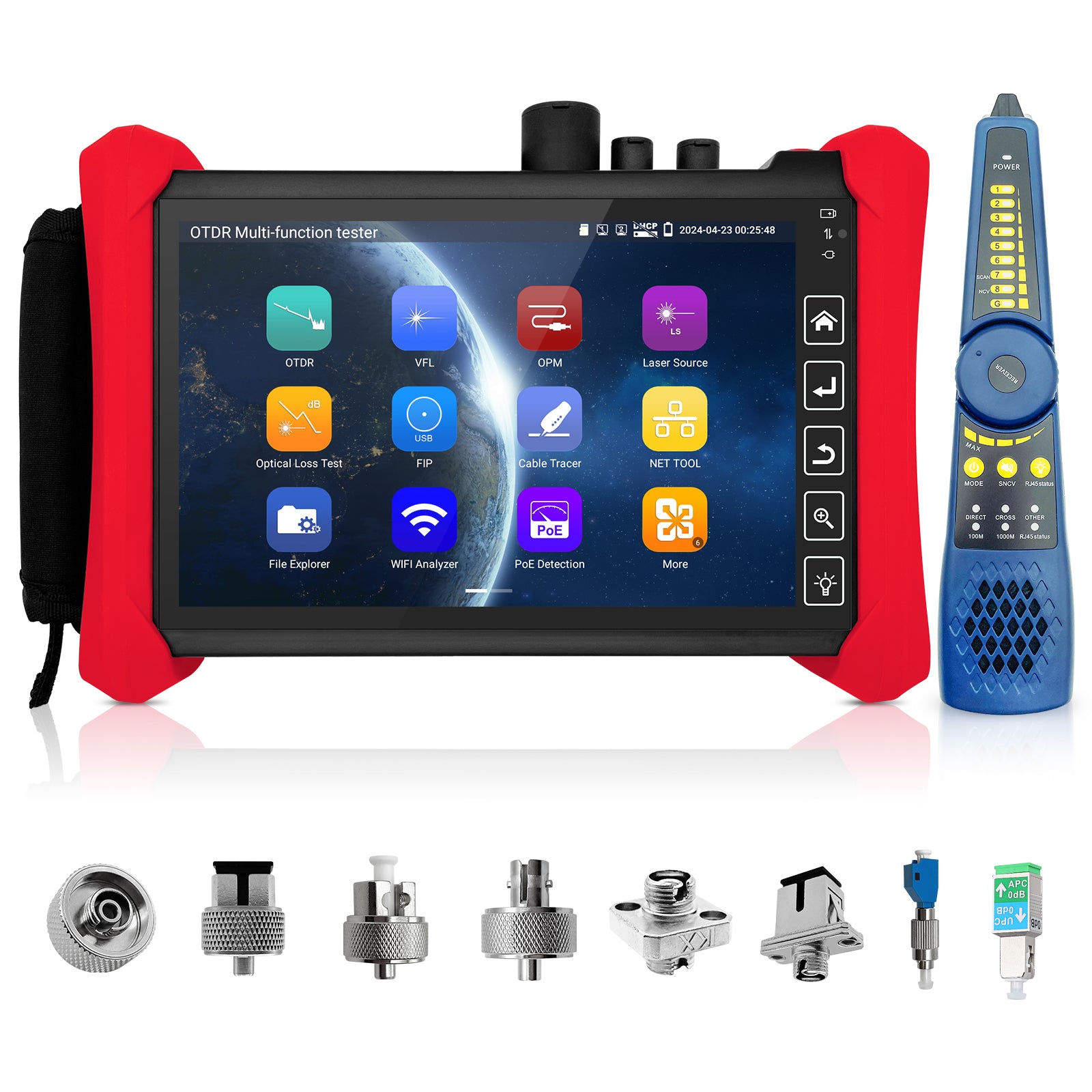

- 7 inch IPS touch screen OTDR tester,1280x800 resolution.
- Optical fiber tools are widely used in FTTX, optical network engineering construction.

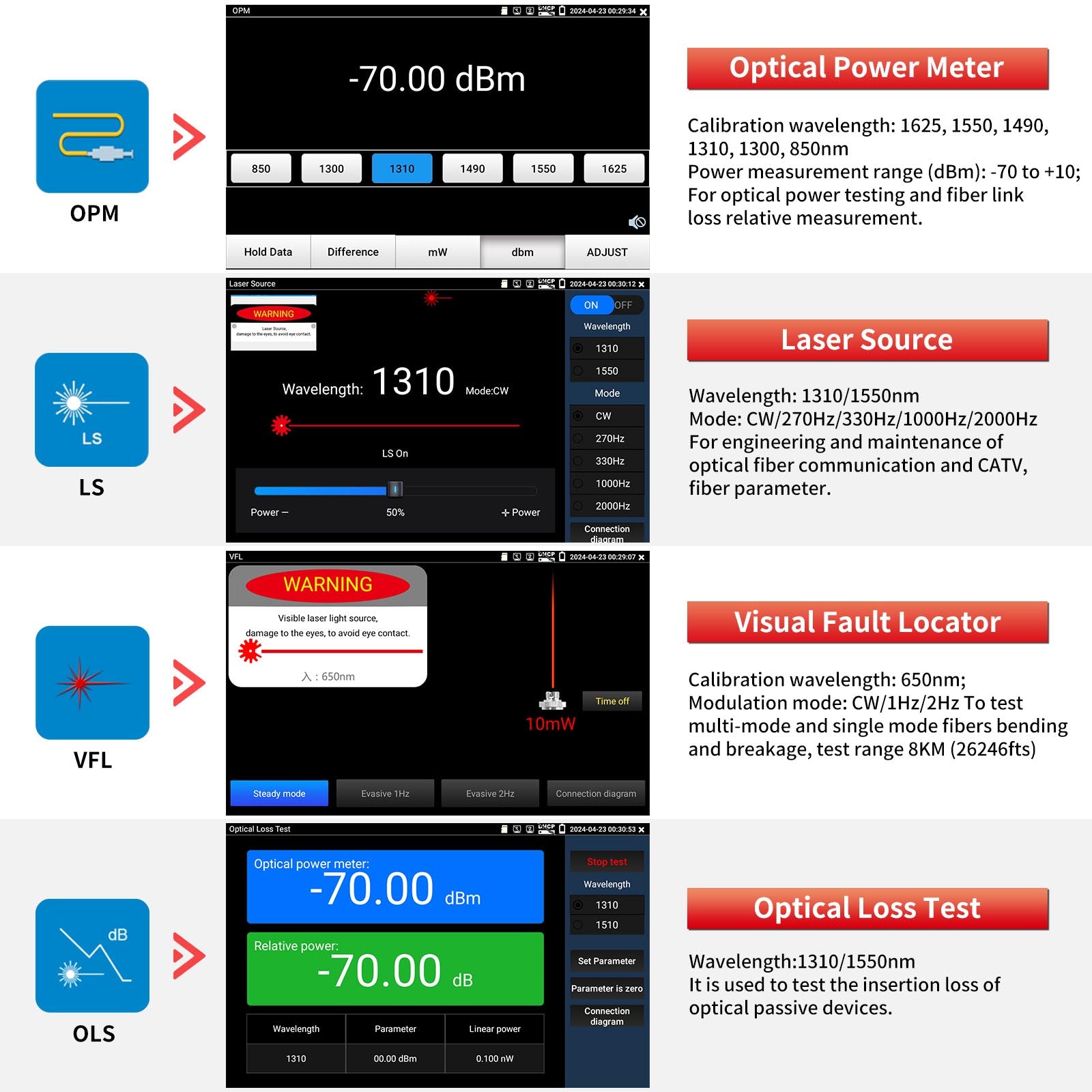

- Optical power meter--used for optical power testing and fiber link loss relative measurement.
- Visual fault locator--the position of the optical fiber fault point can be easily and accurately determined.
- Light sources--Wavelength:1310/1550nm, 270Hz/330Hz/1kHz/2kHz.
- Optical loss test--used to test the insertion loss of optical passive devices.
PARAMETERS
| Brand | Henkion | |||||||
| Series | RSO-73 | |||||||
| Display | 7 inch IPS touch screen,1280x800 resolution | |||||||
| Operating system | Android 10.0 | |||||||
| CPU/RAM/ROM | 1.6GHz(4core )/1GB(DDR)/8GB(EMMC) | |||||||
| Network Port | 2× Gigabit Ethernet ports, 10/100/1000Mbps auto adapt | |||||||

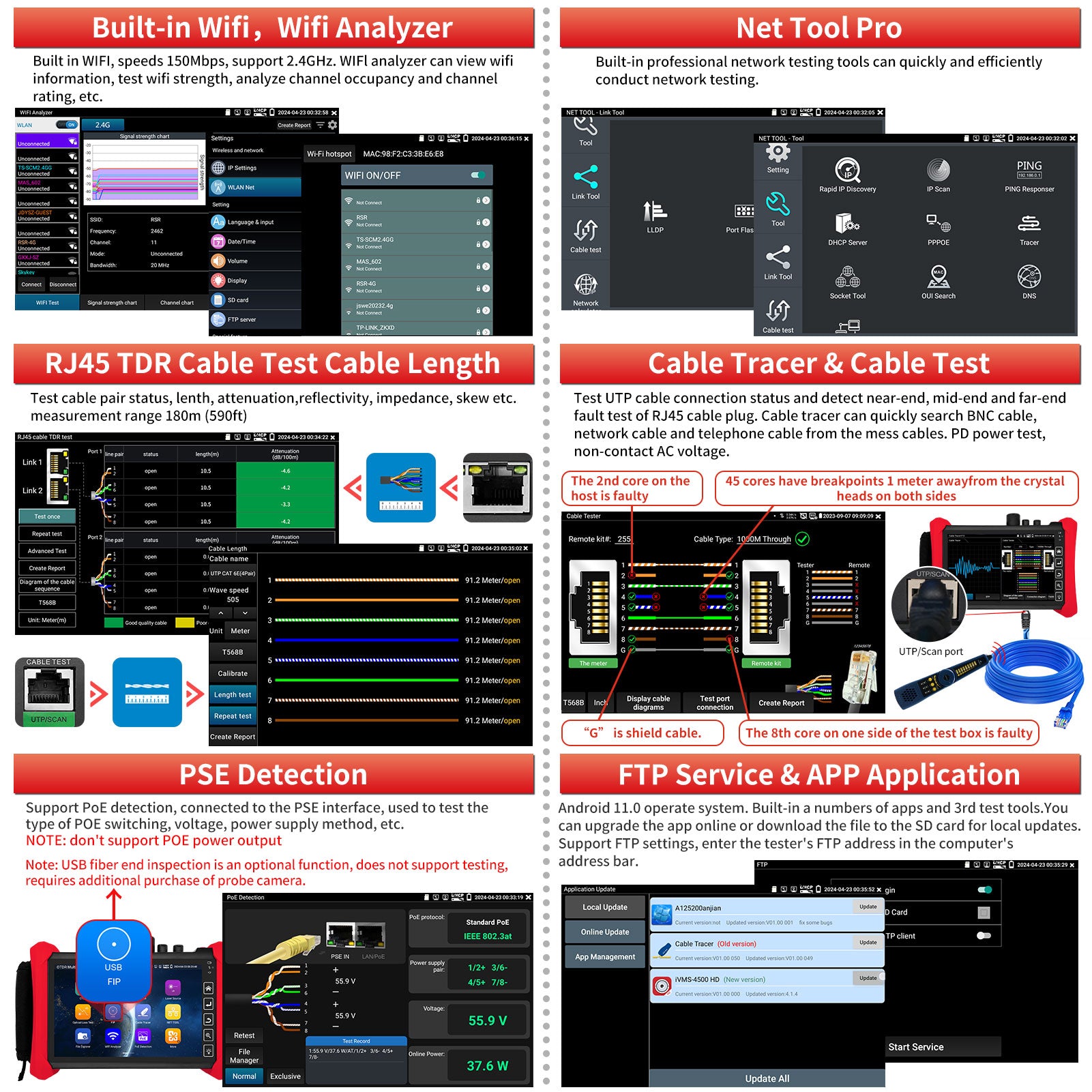

| WIFI | Built in 2.4GHz WIFI, speeds 150Mbps, support WIFI analyzer and great WIFI hotspot. | |||||||
| UTP cable test | Test UTP cable connection status and display on the screen. Read the number on the screen. detect the near-end, mid-end and far-end fault point of RJ45 cable connector, also can test shield cable | |||||||
| Cable length test | Measure the disconnection (open circuit status) position of BNC cables, RJ45 network cables, telephone cable etc. Max test distance 3KM(9,842 feet). Short circuit length detection is not supported. | |||||||
| RJ45TDR cable test | Test cable pair status, length, attenuation, reflectivity, and impedance, skew etc. measurement range 180 meter(about 590feet). | |||||||
| Network test | IP address scanning, Link monitor, port flashing, Ping test, switch port LLDP detection, PPPOE, DHCP server, FTP file management | |||||||
| Digital Cable tracer (Non-Contact Voltage) |
Digital Cable tracer: Search BNC cable, network cable and telephone cable from the mess cables. Cable tracer and UTP cable test app in the same interface, also can search shield cable Non-Contact Voltage(NCV): Voltage range:AC12V to 1000V, Frequency:50/60Hz, Alarm type:Sounds and light double alarms, Level:CAT.III 1000V / CAT.IV 600V;CE |
|||||||
| PoE | Support PoE detection, connected to the PSE interface, used to test the type of POE switching, voltage, power supply method, etc. NOTE: don't support POE power output | |||||||
| storage | Internal storage 8GB and built-in TF card slot, include a 8GB TF card | |||||||
| External power supply | DC 12V/1A | |||||||
| Power output | DC5V/2A power output | |||||||
| Battery | Built-in 7.4V Lithium polymer battery, 7800mAh, 57.72Wh | |||||||
| Rechargeable | After charging 4 hours, normal working time 11 hours | |||||||
| Operation Interface Language | OSD menu, select your desired language: English, Portuguese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Turkish, Deutsch, Serbain, Czech, Vietnamese etc | |||||||
| TesterPlay | Tester, android version mobile phone and PC display at the same time (Doesn't support IOS) | |||||||
| Auto off | 5 to 30 (mins) | |||||||
| Working Temperature | -10℃ to +50℃ (14℉ to 122℉) | |||||||
| Working Humidity | 30% to 90% | |||||||
| Tester Dimension/Weight | 213x148x48mm / 1000g (8.39x5.83x1.89inch / 2.2lbs) | |||||||
| Package Dimension/Weight | 280x240x100mm / 1800g (11.02x9.45x3.94inch / 3.97lbs) | |||||||
| OTDR Technical Specifications | ||||||||
| Wavelength (nm) | 1550nm | 1310/1550nm | 1610nm | |||||
| Dynamic range (dB)(1) | 24dB | 28/26dB | 30/28dB | 32/30dB | 34/32dB | 28dB | 30dB | 32dB |
| Support detect optical signal | Support (When an optical signal is detected in the fiber, a prompt will pop up and the test will be disabled to protect the device) | N/A | ||||||
| Live Testing | N/A | Support | ||||||
| Pulse width (ns) | 5, 10, 20, 30, 50, 80, 160, 300, 500, 800, 1000, 2000, 4000, 6000, 10000, 20000 | |||||||
| Measurement range | ≤150 Km | |||||||
| Event blind zone (m)(2) | ≤1.6m | |||||||
| Attenuation blind zone (m)(3) | ≤8m | |||||||
| Linearity dB/dB) | ±0.05 dB/dB | |||||||
| Loss threshold (dB) | 0.05 | |||||||
| Loss resolution ratio (dB) | 0.01 | |||||||
| Minimum distance resolution | 0.05 | |||||||
| Sampling point | 32-128K | |||||||
| Distance uncertainty (m) | ±(1 m + 5×10-5× distance + sampling interval) | |||||||
| Distance scope (km) | 0.5, 1, 2, 5, 10, 25, 50, 100, 200 | |||||||
| Typical real-time refreshing duration | 1S | |||||||
| File format | SOR standard format/PDF/EXCEL | |||||||
| Measurement duration | 5sec, 10sec, 15sec, 30sec, 1min, 2min, 3min are selectable | |||||||
| Laser Source(LS) | Wavelength: Consistent with OTDR Power: -5dBm to 0dBm(adjustable) Mode: 270Hz/330Hz/1kHz/2kHz Stability: CW, ±0.2dB/15min (tested after power-on warm-up for 15min) |
|||||||
| Visual fault locator | 10mW visual fault locator with 650nm wavelength, emit red laser sources to test multi-mode and single mode fiber’s bending and breakage, test range 8KM (26246fts) | |||||||
| Optical power meter | Wavelength:1625nm,1550nm,1490nm,1310nm,1300nm,850nm, measurement range: -70 to +10 dBm, for optical power testing and fiber link loss relative measurement | |||||||
| USB fiber end inspection | Optional feature, requires additional purchase of probe camera | |||||||

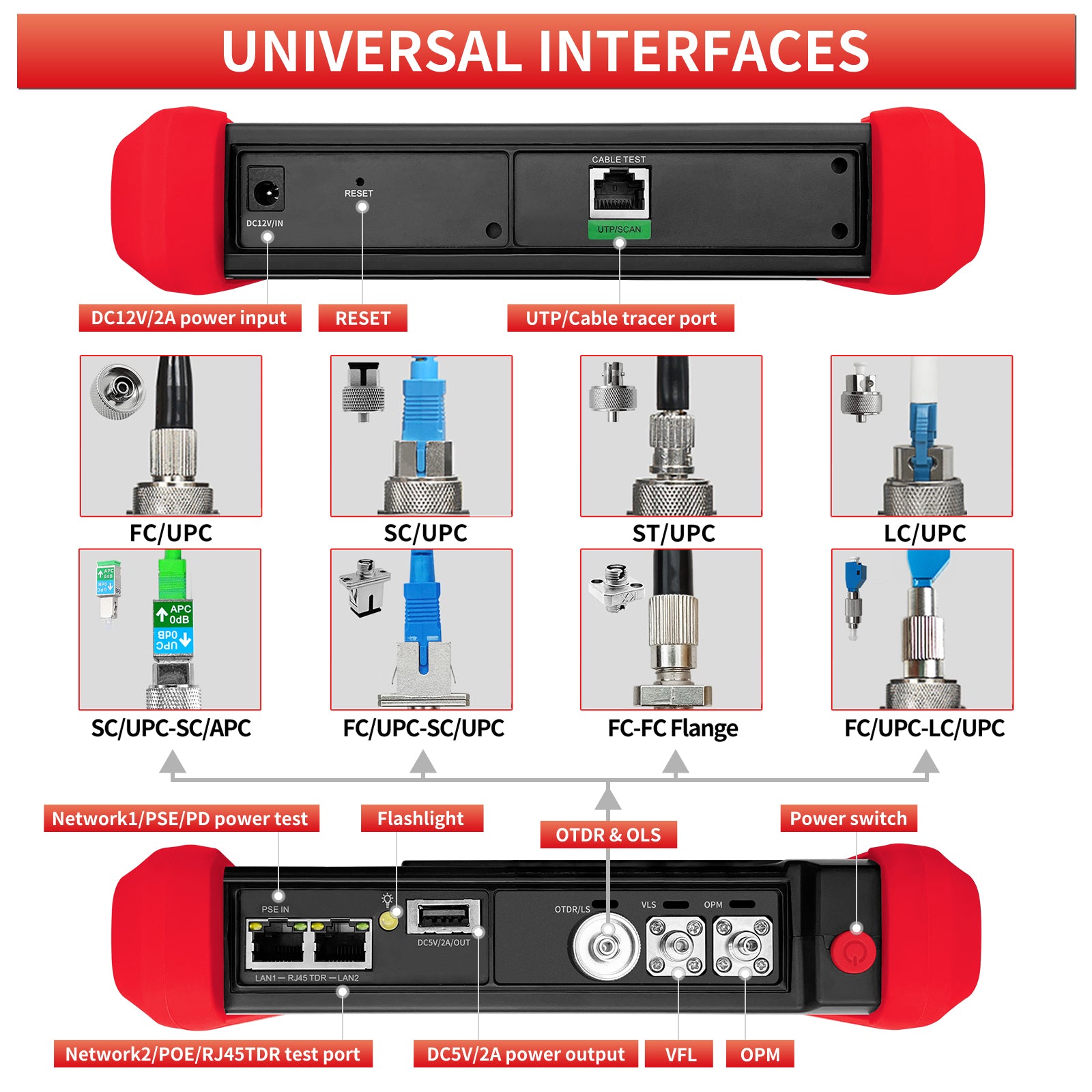

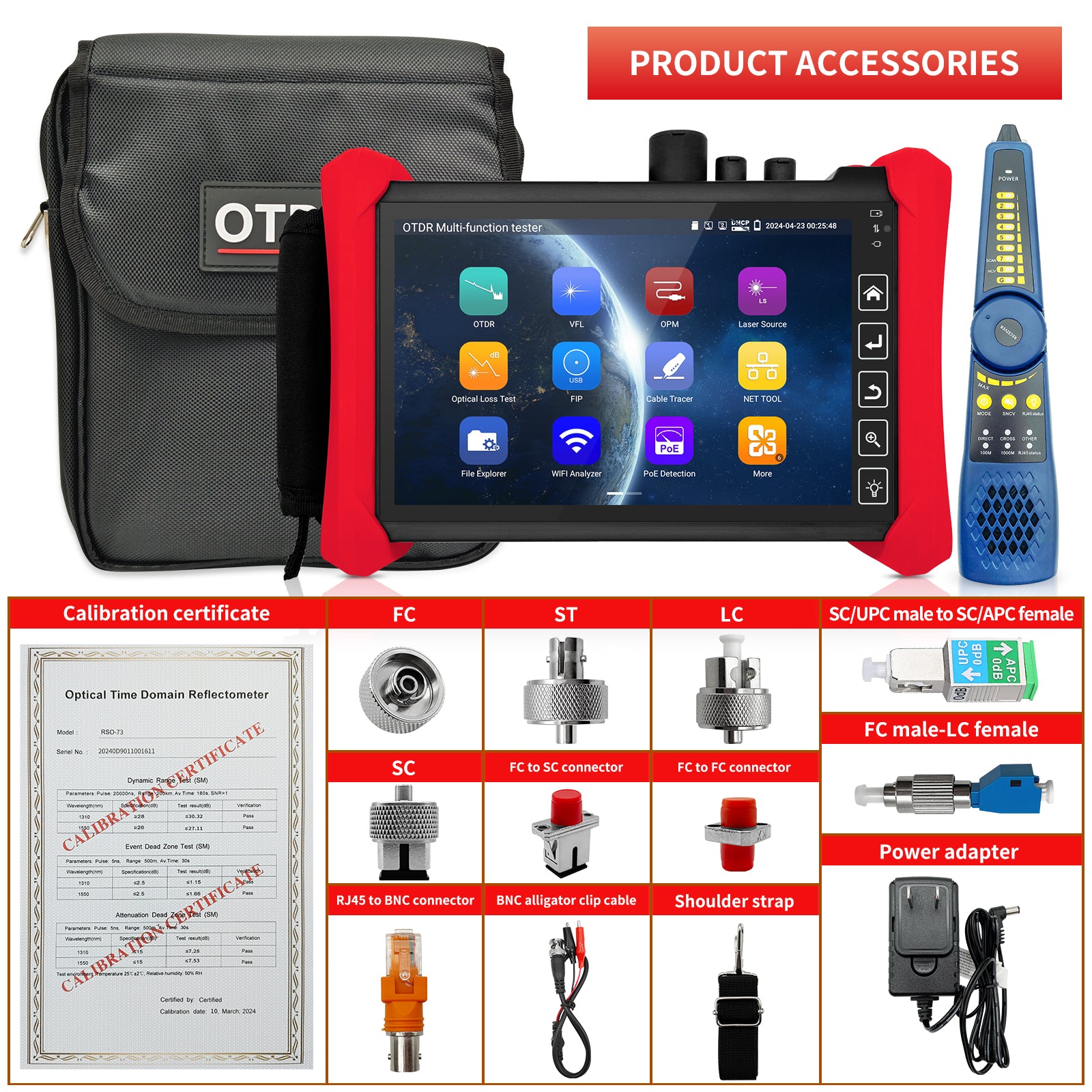

| Interface type | SC-UPC, Interchangeable LC/FC/ST | |||||||
|
Remarks: (1) The technical specification describes the ensured performance of the instrument when using typical PC model connector to measure, without considering the uncertainty caused by optical fiber refractivity.Test environment: temperature 25℃±2℃(77℉±3.6℉), relative humidity: 50%RH. (2) Dynamic range is the data measured under the condition of the maximum pulse width and 3 minutes of average time. Dynamic range is the data measured under the condition of 200km/20000ns/3min. (3) Measuring conditions of blind zone: reflection event is within 5Km, reflection strength is 45dB. Measured by the minimum pulse width. |
||||||||
